Telescopic Electric Cylinder

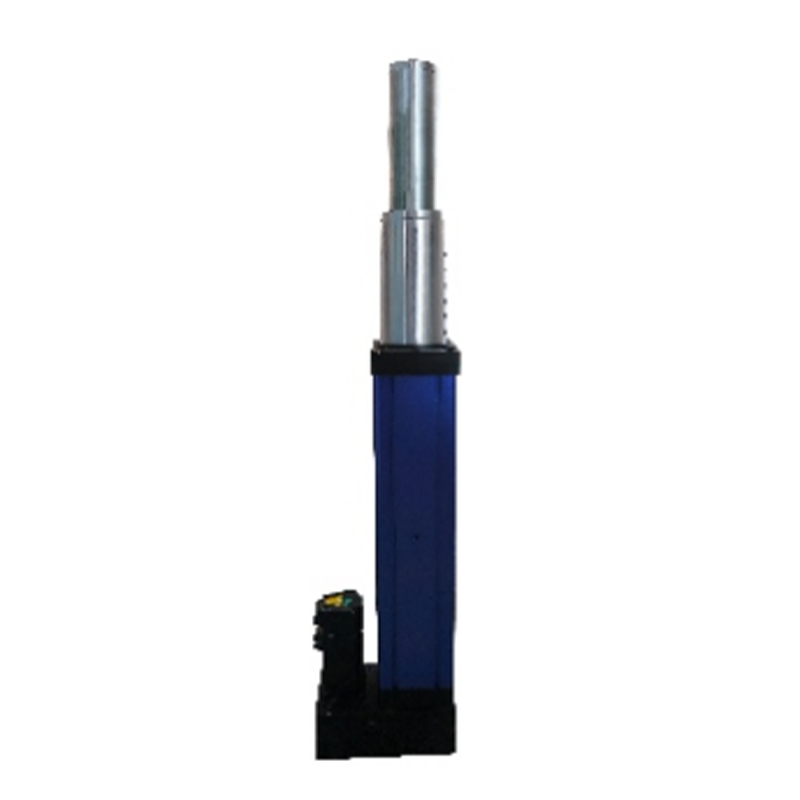

Two-Stage Synchronous Telescopic Electric Cylinder
Product Features: Two-stage telescopic structure (retracted length is 1/3 of the maximum stroke), single motor drive (synchronous motion of two stages); maximum stroke up to 2000mm; cylinder body is made of high-strength aluminum alloy, rated load 2KN~8KN; maximum stroke 2000mm, customizable; servo control mode, working temperature -10℃~40℃, protection level IP65.
Advantages: Two-stage telescopic structure realizes long stroke with small retracted length, solving the problem of limited installation space and long stroke demand; single motor drive ensures synchronous motion of two stages, stable transmission and low energy consumption; high-strength aluminum alloy balances light weight and load-bearing capacity, convenient for installation and operation; high positioning accuracy meets long-stroke precision operation needs.
Applications: Suitable for large-scale automated handling equipment, stage lifting systems, large mold adjustment mechanisms, and other scenarios that require long stroke and compact installation.
Working Principle: The single servo motor provides power, which is transmitted to the internal multi-stage transmission mechanism through the gear box; the two-stage telescopic rod is driven by the transmission mechanism to realize synchronous telescopic motion, converting the motor's rotational motion into linear motion; the positioning system monitors the stroke in real time, ensuring precise positioning of the telescopic rod, and the compact structure reduces the retracted length while ensuring the maximum stroke.
