Telescopic Electric Cylinder

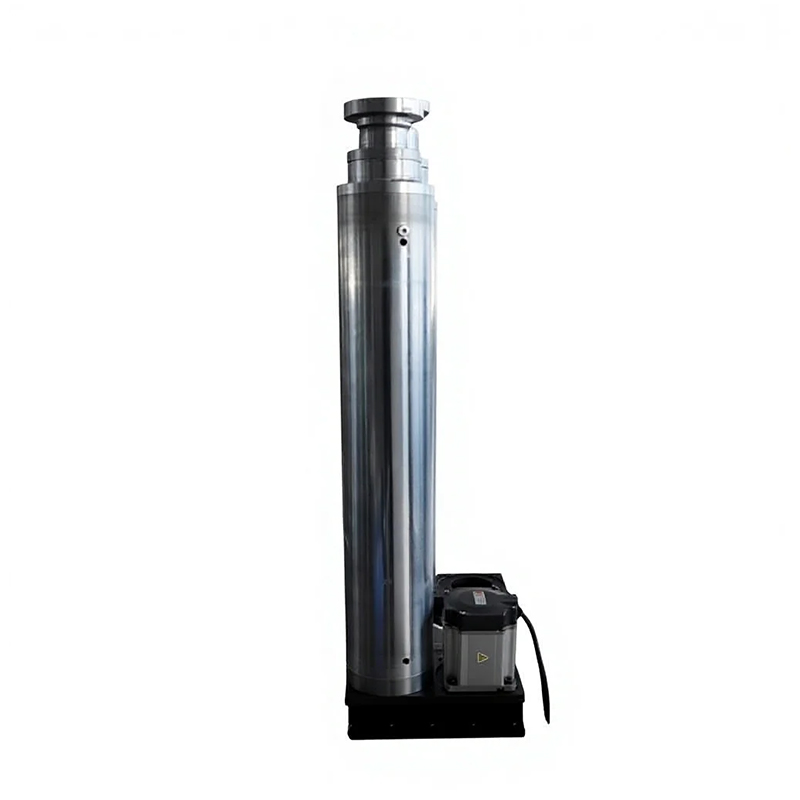

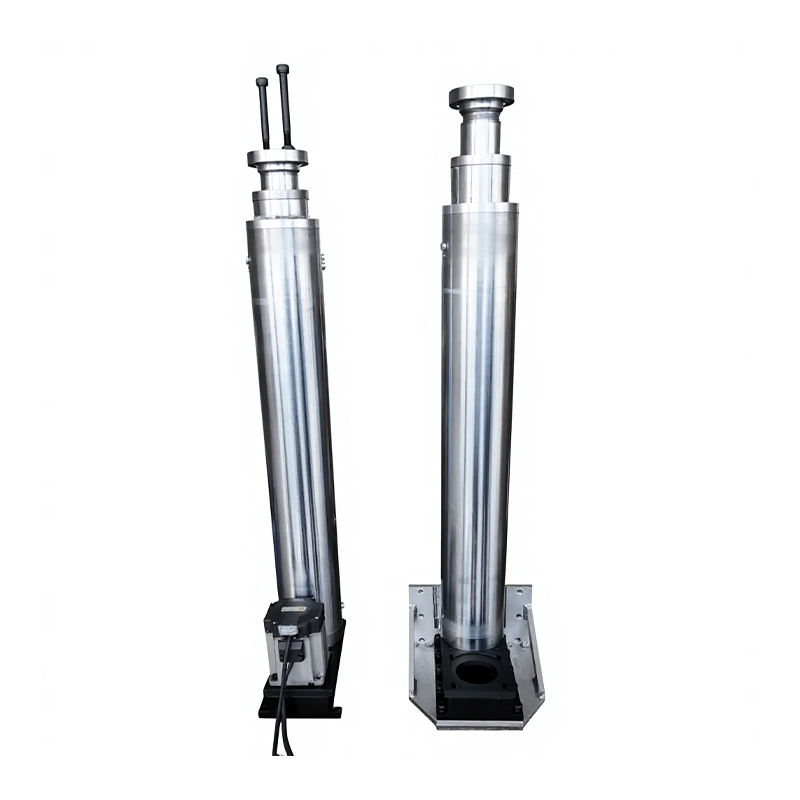

Four-Stage Long-Stroke Telescopic Electric Cylinder
Product Features: Four-stage telescopic structure (retracted length is 1/5 of the maximum stroke), maximum stroke up to 3500mm; multi-section anti-jitter design, positioning accuracy ±0.04mm; cylinder body is made of high-strength aluminum alloy, rated load 8KN~10KN; stroke 3500mm.
Advantages: Four-stage telescopic structure further reduces retracted length and increases maximum stroke (up to 3500mm), suitable for ultra-long stroke scenarios; rated speed of 200mm/s improves work efficiency; multi-section anti-jitter design ensures stable motion during telescopic operation, avoiding deviation caused by long-stroke and high-speed movement; lightweight material is convenient for installation and transportation; servo control ensures stable motion and precise positioning.
Applications: Widely used in large-scale stage equipment, heavy-duty lifting platforms, long-distance linear transmission systems, ultra-long stroke conveying equipment, and other ultra-long stroke and high-efficiency operation scenarios.
