Heavy Load Ball Screw Driven Rail-Embedded Linear Module

Our Heavy Load Ball Screw Driven Rail-Embedded Linear Module is designed to handle heavy industrial loads with reliability, adopting a reinforced ball screw and high-strength aluminum alloy body to enhance overall rigidity and prevent deformation under heavy load conditions. The Rail-Embedded Linear Module’s integrated guide rail design eliminates redundant installation components, ensuring stable and precise linear movement even when bearing large loads. This Rail-Embedded Linear Module is perfectly suited for heavy-load handling, CNC machine tool feeding, automated production line material transfer, and other scenarios that require both strong load-bearing capacity and high transmission precision.

E-mail: [email protected]
    Inquiry Us
PREV：110KG Load Long Stroke Rail-Embedded Linear Module
NEXT：0.01mm High Precision Ball Screw Driven Rail-Embedded Linear Module

  • Specifications:

    Category Item Specification
    Spec Repeatability (mm) ±0.01
    Ball Screw Lead (mm) 5 10 20 40
    Maximum Speed (mm/s) 250 500 1000 2000
    Maximum Payload (Horizontal, kg) 120 120 83 43
    Maximum Payload (Vertical, kg) 50 40 25 12
    Rated Thrust (N) 2563 1281 640 320
    Stroke Pitch (mm) 50-1200mm/50 interval, 50 mm Pitch
    Parts AC Servo Motor Output (W) 750
    Ball Screw ∅ (mm) C7 ∅20
    Coupling (mm) 12X19
    Home Sensor (Outside) EE-SX674(NPN)
    FC-SPX307Z-2M(NPN)

    Sensor Layout:

    Allowable Overhang：

    Horizontal installation A B C Wall-mounted installation A B C Vertical installation A C
    Lead 70kg 1800 329 380 Lead 70kg 223 223 1920 Lead 20kg 1168 1168
    90kg 1637 233 302 90kg 251 253 1707 30kg 811 811
    120kg 1120 140 210 120kg 180 160 1210 50kg 510 510
    Lead 65kg 1611 318 353 Lead 65kg 286 338 1760 Lead 15kg 1311 1311
    85kg 1180 232 236 85kg 198 252 1330 25kg 750 750
    120kg 680 154 162 120kg 136 174 750 40kg 507 507
    Lead 35kg 1150 392 518 Lead 35kg 410 422 1260 Lead 10kg 1602 1602
    55kg 713 235 308 55kg 250 265 803 14kg 987 987
    83kg 470 190 204 83kg 162 210 520 25kg 620 620
    Lead 15kg 760 680 538 Lead 15kg 450 721 810 Lead 7kg 1100 1100
    22kg 500 396 320 22kg 266 421 530 12kg 620 620
    43kg 260 231 210 43kg 172 251 280

    Static Loading Moment：

    Item Value (Unit: N.m)
    MY 1168
    MP 606
    MR 606

    The torque values shown in the table represent the center of gravity.
    The guaranteed service life is 10,000 km when the product is used normally in compliance with the specifications in the catalog.
    The standard specifications do not apply to ceiling-mounted inverted use. Please contact our sales team for details if required.

  • Product Structure:

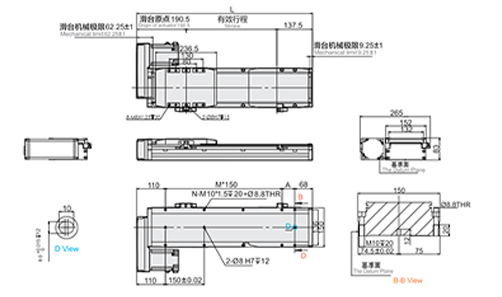

    Motor Right Side

    Stroke 100 150 200 250 300 350 400 450 500 550 600 650 7000 750 8000 850 9000 950 10000 10500 11000 11500 12000
    L 428 478 528 578 628 678 728 778 828 878 928 978 1028 1078 1128 1178 1228 1278 1328 1378 1428 1478 1528
    A 100 150 50 100 150 50 100 150 50 100 150 50 1000 150 50 1000 150 50 1000 150 50 100 150
    M 1 1 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8 8 8
    N 6 6 8 8 8 10 10 10 12 12 12 14 14 14 16 16 16 18 18 18 20 20 20
    KG 10.3 11.07 11.84 12.61 13.38 14.15 14.92 15.69 16.47 17.24 18.01 18.78 19.55 20.32 21.09 21.86 22.63 23.4 24.18 24.95 25.72 26.49 27.26


    When the stroke is 50mm, the top-locking mounting holes on the main body will be blocked by the slider, allowing only 4 screws to be used for fixation. It is recommended that customers use the bottom-locking mounting holes to secure the main body.

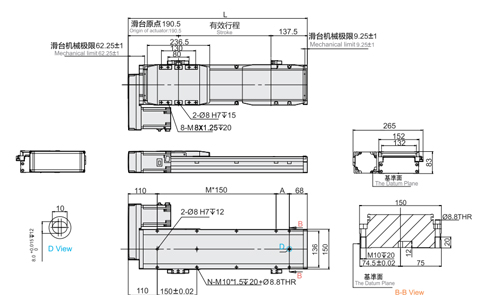

    Motor Left Side

    Stroke  100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200
    L  428 478 528 578 628 678 728 778 828 878 928 978 1028 1078 1128 1178 1228 1278 1328 1378 1428 1478 1528
    A  100 150 50 100 150 50 100 150 50 100 150 50 100 150 50 100 150 50 100 150 50 100 150
    M 1 1 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8 8 8
    N 6 6 8 8 8 10 10 10 12 12 12 14 14 14 16 16 16 18 18 18 20 20 20
    Weight 10.3 11.07 11.84 12.61 13.38 14.15 14.92 15.69 16.47 17.24 18.01 18.78 19.55 20.32 21.09 21.86 22.63 23.4 24.18 24.95 25.72 26.49 27.26

    When the stroke is 50mm, the top-locking mounting holes on the main body will be blocked by the slider. Only 4 screws can be used for fixation. It is recommended that customers secure the main body using the bottom-locking mounting holes.

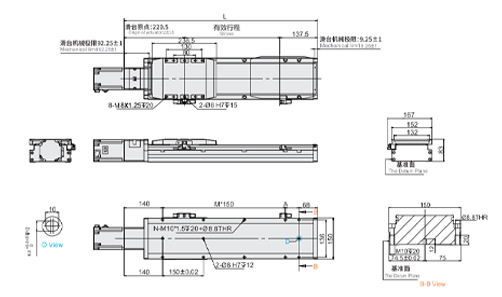

    Motor Exposed

    Stroke 100 150 200 250 300 350 400 450 500 550 600 650 7000 750 8000 850 9000 950 10000 1050 11000 1150 12000
    L 458 508 558 608 658 708 758 808 858 908 958 1008 1058 1108 1158 1208 1258 1308 1358 1408 1458 1508 1558
    A 100 150 50 100 150 50 100 150 50 100 150 50 1000 150 50 1000 150 50 1000 150 50 1000 150
    M 1 1 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8 8 8
    N 6 6 8 8 8 10 10 10 12 12 12 14 14 14 16 16 16 18 18 18 20 20 20
    KG 10.02 10.79 11.57 12.34 13.11 13.88 14.65 15.42 16.19 16.96 17.73 18.5 19.28 20.05 20.82 21.59 22.36 23.13 23.9 24.67 25.44 26.21 26.98

    When the stroke is 50mm, the top-locking mounting holes on the main body will be blocked by the slider, allowing only 4 screws to be used for fixation. It is recommended that customers secure the main body using the bottom-locking mounting holes.

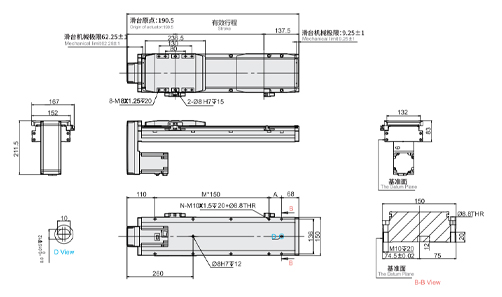

    Motor Bottom Side

    Stroke 100 150 200 250 300 350 400 450 500 550 600 650 7000 750 8000 850 9000 950 10000 1050 11000 1150 12000
    L 428 478 528 578 628 678 728 778 828 878 928 978 1028 1078 1128 1178 1228 1278 1328 1378 1428 1478 1528
    A 100 150 50 100 150 50 100 150 50 100 150 50 1000 150 50 1000 150 50 1000 150 50 1000 150
    M 1 1 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8 8 8
    N 6 6 8 8 8 10 10 10 12 12 12 14 14 14 16 16 16 18 18 18 20 20 20
    KG 10.3 11.07 11.84 12.61 13.38 14.15 14.92 15.69 16.47 17.24 18.01 18.78 19.55 20.32 21.09 21.86 22.63 23.4 24.18 24.95 25.72 26.49 27.26

    When the stroke is 50mm, the top-locking mounting holes on the main body will be blocked by the slider, allowing only 4 screws to be used for fixation. It is recommended that customers secure the main body using the bottom-locking mounting holes.

  • Suitable Motor Brand:

    Options of Stepper Motors

    Brand Mark Brake Watt AC-Voltage Motor Model Driver Model
    Mitsubishi M No Brake (Horizontal Type) 750 220 HG-KN73J-S100 MR-JE-70A
    Mitsubishi M With Brake (Vertical Type) 750 220 HG-KN73BJ-S100 MR-JE-70A
    Panasonic P No Brake (Horizontal Type) 750 220 MHMF082L1U2M MCDLN35SE
    Panasonic P With Brake (Vertical Type) 750 220 MHMF082L1V2M MCDLN35SE
    Delta T No Brake (Horizontal Type) 750 220 ECM-B3M-C20807RS1 ASD-B3-0721-L
    Delta T With Brake (Vertical Type) 750 220 ECM-B3M-C20807SS1 ASD-B3-0721-L

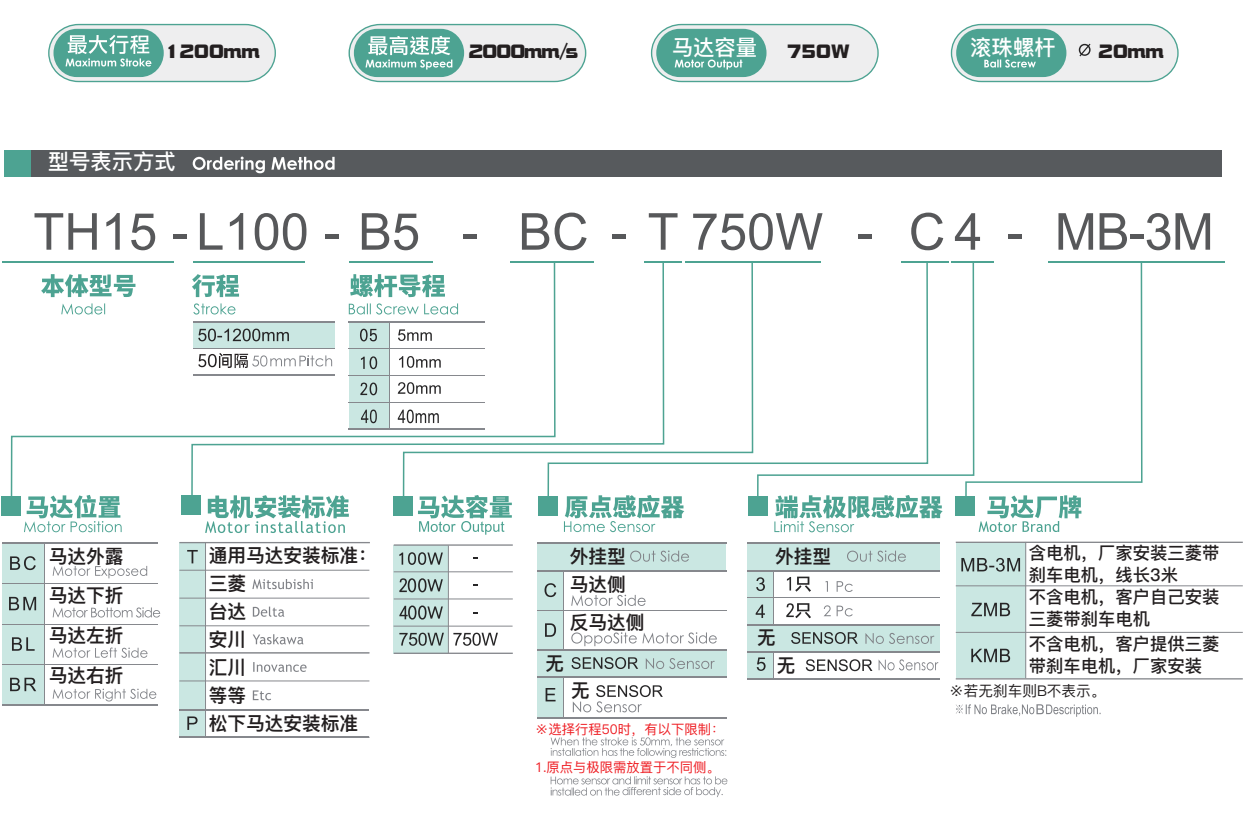

  • Model Explanation:

=
