6DOF Dual Seat Triple Screen Racing Simulation Platform

Home / Products / Motion Simulation Platform / Racing Simulation Platform / 6DOF Dual Seat Triple Screen Racing Simulation Platform

  • 6DOF Dual Seat Triple Screen Racing Simulation Platform
  • 6DOF Dual Seat Triple Screen Racing Simulation Platform
  • 6DOF Dual Seat Triple Screen Racing Simulation Platform
  • 6DOF Dual Seat Triple Screen Racing Simulation Platform
Racing Simulation Platform

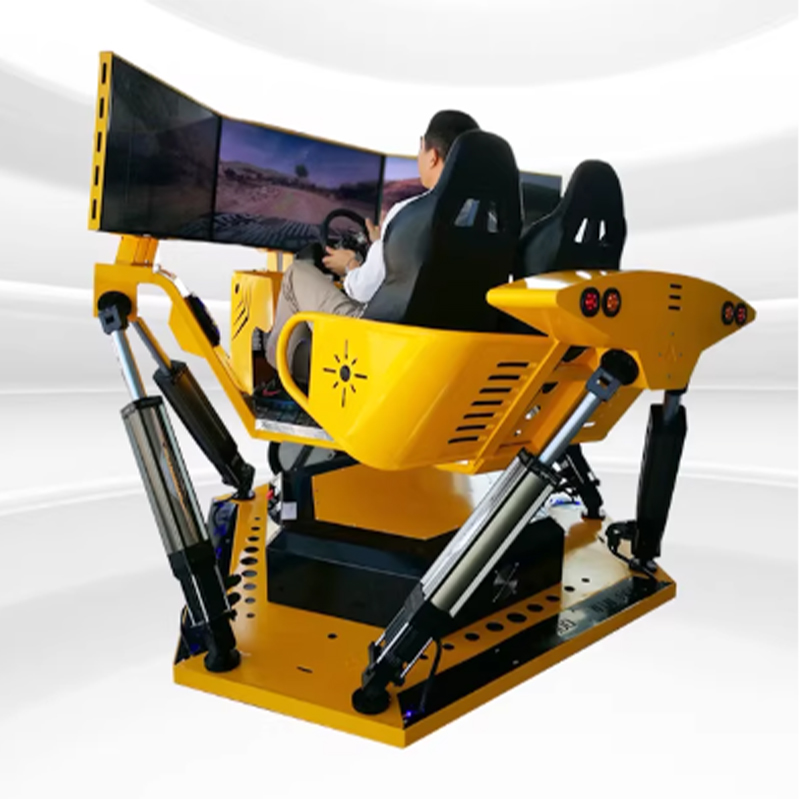

6DOF Dual Seat Triple Screen Racing Simulation Platform

This 6DOF dual-seat triple-screen racing simulation platform is a professional immersive racing experience device designed for commercial entertainment venues, theme parks, and racing experience halls. Equipped with a high-precision six-degree-of-freedom parallel motion system, it delivers ultra-realistic dynamic feedback, accurately simulating acceleration, braking, sharp turns, road bumps, and G-force during high-speed racing. The dual ergonomic racing seats and 3-screen panoramic display create an immersive, first-person driving environment, allowing two users to experience competitive racing simultaneously. With a high-rigidity mechanical structure, stable servo drive system, and seamless compatibility with mainstream racing simulation software, this platform ensures smooth, safe, and long-term operation. It is widely used in VR experience centers, science museums, automotive exhibitions, and commercial entertainment projects, providing an unforgettable, highly realistic racing experience for enthusiasts and casual users alike.

E-mail: [email protected]
    Inquiry Us
PREV：6 Axis Motion Racing Simulator with Dual Seats
NEXT：No next article
  • Degree of freedom Angle or Displacement Speed Acceleration Positioning accuracy Repeat positioning accuracy
    Pitch (α) ±5° ~ ±60° ≤50°/s 100°/s² 0.03° 0.03°
    Roll (β) ±5° ~ ±60° ≤50°/s 100°/s² 0.03° 0.03°
    Yaw (γ) ±5° ~ ±60° ≤50°/s 100°/s² 0.03° 0.03°
    Lateral displacement (x) ±10mm ~ ±450mm ≤1000mm/s ≤2.0g 0.03mm 0.01mm
    Longitudinal displacement (y) ±10mm ~ ±450mm ≤1000mm/s ≤2.0g 0.03mm 0.01mm
    Vertical lift (z) ±10mm ~ ±800mm ≤1000mm/s ≤2.0g 0.03mm 0.01mm
    Other technical parameters

    1. System response frequency: 0Hz–20Hz
    2. Run parameters: ≤0.02mm
    3. Drift: The platform system runs continuously for more than 12 hours, the position drift of any one cylinder will not exceed 0.0025 m
    Control system

    1. The control system of the motion platform is controlled by an EtherCAT bus. Core hardware self-production, bus-type servo motor, platform control software, and so on.
    2. The platform integrates the mechanical concept of a high-dynamic ball screw, the perfect simulation and design ability, and realizes the higher motion reliability of the platform.
    3. The platform control software can be non-calibrated, and the self-developed core algorithm achieves the target of high schedule performance after many years of iterative optimization. In addition, an optional matching algorithm, a special effects module algorithm, etc., to provide customers with a set of solutions close to their needs.

  • Software Interface

    Drawings

    Technical Specifications

    Form: Backtrack or direct connection Size:0.5-8 sqm Power:400W-22kW motor
    Diameter of screw: 12-80mm Weight:60-4000kg RPM range:1500-3000 rpm
    Lead Screw: 5-32mm Effective load:200-15000kg Torque:1.27-140Nm
    Range: 70-800mm Transverse displacement:± 10-450mm Supply voltage: Single or three-phase
    Rated output: 1-150KN Longitudinal displacement:± 10-450mm
    Deceleration ratio: 0.5-10 Vertical rise and fall:± 10-800mm
    Installation: Front and rear fork hinge/flange/trunnion Pitch/roll/yaw:± 5-60°
    Noise: < 65 dB Average trouble-free working time:> 6000H
    Rated speed: 133~1000 mm/sec
