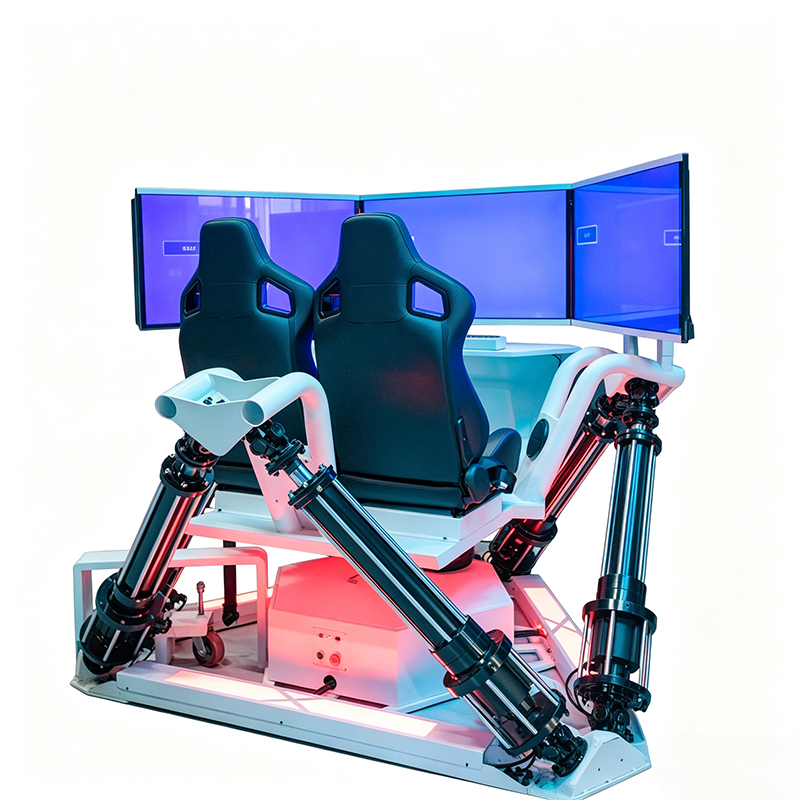

6 Axis Motion Racing Simulator with Dual Seats

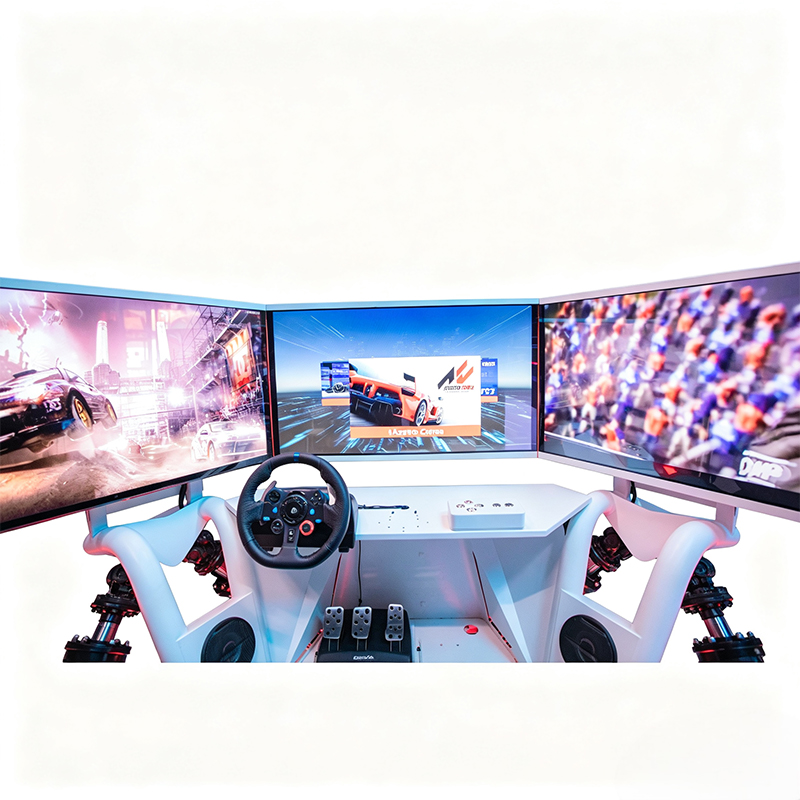

This professional 6-axis motion racing simulator features a dual-seat configuration and a six-degree-of-freedom electric parallel motion platform, engineered to deliver high-performance racing simulation for commercial and training use. The platform accurately reproduces the key dynamic characteristics of a real race car, including cornering G-forces, road surface vibrations, and vehicle attitude changes, while the triple high-definition panoramic screens provide a 180° immersive visual field to minimize blind spots and enhance the sense of presence. The ergonomic racing seats with adjustable support ensure comfort during extended simulation sessions, and the integrated control system supports customizable motion parameters, scene switching, and data recording. Built with a heavy-duty, durable frame and comprehensive safety protection, this simulator is ideal for professional racing training institutions, commercial experience centers, automotive brand showrooms, and large-scale entertainment venues, delivering a premium, highly realistic racing experience for both training and entertainment applications.

E-mail: [email protected]
    Inquiry Us
PREV：Immersive 6DOF Motion Racing Platform for Commercial Use
NEXT：6DOF Dual Seat Triple Screen Racing Simulation Platform
  • Degree of freedom Angle or Displacement Speed Acceleration Positioning accuracy Repeat positioning accuracy
    Pitch (α) ±5° ~ ±60° ≤50°/s 100°/s² 0.03° 0.03°
    Roll (β) ±5° ~ ±60° ≤50°/s 100°/s² 0.03° 0.03°
    Yaw (γ) ±5° ~ ±60° ≤50°/s 100°/s² 0.03° 0.03°
    Lateral displacement (x) ±10mm ~ ±450mm ≤1000mm/s ≤2.0g 0.03mm 0.01mm
    Longitudinal displacement (y) ±10mm ~ ±450mm ≤1000mm/s ≤2.0g 0.03mm 0.01mm
    Vertical lift (z) ±10mm ~ ±800mm ≤1000mm/s ≤2.0g 0.03mm 0.01mm
    Other technical parameters

    1. System response frequency: 0Hz–20Hz
    2. Run parameters: ≤0.02mm
    3. Drift: The platform system runs continuously for more than 12 hours, the position drift of any one cylinder will not exceed 0.0025 m
    Control system

    1. The control system of the motion platform is controlled by an EtherCAT bus. Core hardware self-production, bus-type servo motor, platform control software, and so on.
    2. The platform integrates the mechanical concept of a high-dynamic ball screw, the perfect simulation and design ability, and realizes the higher motion reliability of the platform.
    3. The platform control software can be non-calibrated, and the self-developed core algorithm achieves the target of high schedule performance after many years of iterative optimization. In addition, an optional matching algorithm, a special effects module algorithm, etc., to provide customers with a set of solutions close to their needs.

  • Software Interface

    Drawings

    Technical Specifications

    Form: Backtrack or direct connection Size:0.5-8 sqm Power:400W-22kW motor
    Diameter of screw: 12-80mm Weight:60-4000kg RPM range:1500-3000 rpm
    Lead Screw: 5-32mm Effective load:200-15000kg Torque:1.27-140Nm
    Range: 70-800mm Transverse displacement:± 10-450mm Supply voltage: Single or three-phase
    Rated output: 1-150KN Longitudinal displacement:± 10-450mm
    Deceleration ratio: 0.5-10 Vertical rise and fall:± 10-800mm
    Installation: Front and rear fork hinge/flange/trunnion Pitch/roll/yaw:± 5-60°
    Noise: < 65 dB Average trouble-free working time:> 6000H
    Rated speed: 133~1000 mm/sec
