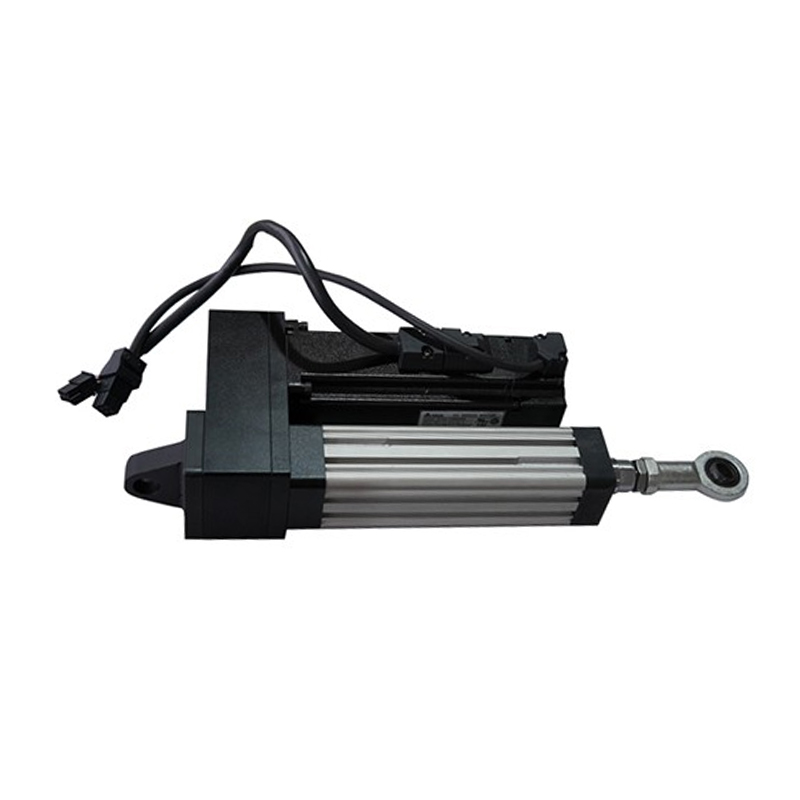

Compact Foldable Parallel Foldback Electric Cylinder

Home / Products / Electric Cylinder / Foldback Electric Cylinder / Compact Foldable Parallel Foldback Electric Cylinder

  • Compact Foldable Parallel Foldback Electric Cylinder
  • Compact Foldable Parallel Foldback Electric Cylinder
Foldback Electric Cylinder

Compact Foldable Parallel Foldback Electric Cylinder

Product Features: Adopts a foldable parallel structure,suitable for narrow installation spaces; motor is parallel to the cylinder body, connected by synchronous belt transmission; positioning accuracy ±0.02mm, rated load 500N; cylinder body is made of lightweight aluminum alloy; stroke range 50mm~500mm, customizable; PLC control mode, working temperature -10℃~40℃, protection level IP65.

Advantages: Compact foldable structure greatly reduces occupied space when retracted, solving the problem of narrow installation space; synchronous belt transmission ensures stable power transmission and low energy consumption; lightweight aluminum alloy body is convenient for installation and transportation; simple operation and easy integration with small equipment.

Applications: Ideal for small automated equipment, medical instruments (such as small diagnostic equipment), electronic product assembly lines, and other scenarios that require compact structure and high space utilization.

Working Principle: The motor is installed parallel to the cylinder body, and the power is transmitted to the cylinder through the synchronous belt, driving the internal transmission mechanism to convert rotational motion into linear motion; the foldable structure realizes telescopic movement of the cylinder, reducing the overall length when retracted; the PLC control system controls the motor operation, adjusting the stroke and speed to meet the needs of different working scenarios.

=
