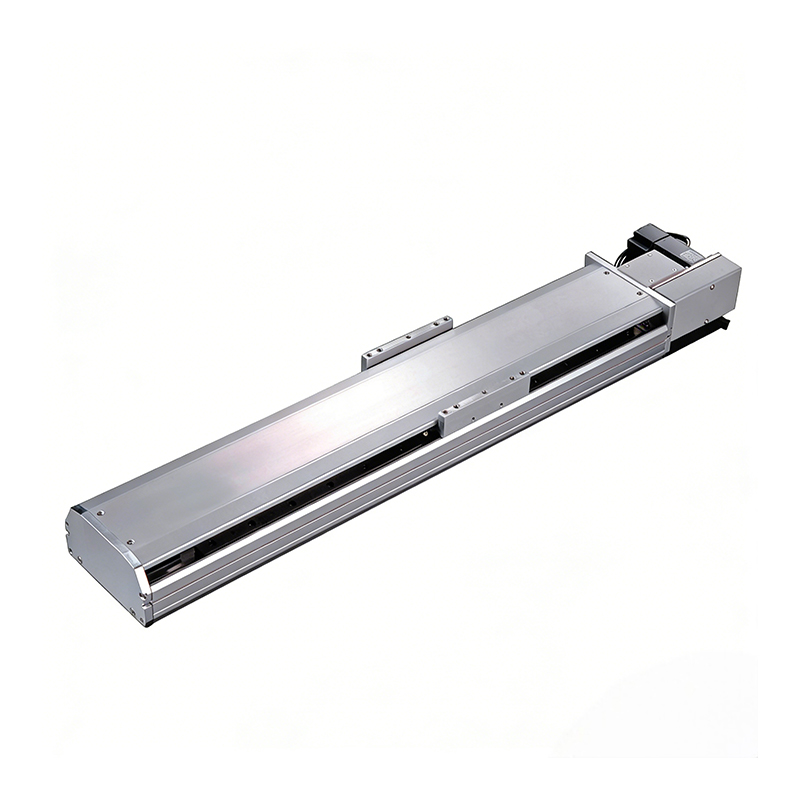

3500mm Long-Stroke Industrial Belt Driven Linear Module

This long-stroke industrial Belt Driven Linear Module is designed for large-scale linear motion applications. It offers an effective stroke length of 3500mm with a maximum payload capacity of 85kg. Equipped with two sets of precision linear guide rails, it ensures stable and smooth movement over long travel distances.
It is widely used in laser cutting systems, large-format printing equipment, gantry handling systems, and warehouse logistics applications that require long-range and stable positioning. The module is constructed with high-strength aluminum alloy profile for stable performance and effective dust protection.
This Belt Driven Linear Module features low maintenance and long service life under continuous working conditions.

E-mail: [email protected]
    Inquiry Us
PREV：No previous article
NEXT：2080mm/s High-Speed Precision Belt Driven Linear Module

  • Specifications:

    Category Item Specification
    Spec Repeatability (mm) ±0.04
    Ball Screw Lead (mm) 40
    Maximum Speed (mm/s) 2000
    Maximum Payload (Horizontal, kg) 85
    Maximum Payload (Vertical, kg) 14
    Rated Thrust (N) 367
    Stroke Pitch (mm) 50-3500 mm/50interval, 50 mm Pitch
    Parts AC Servo Motor Output (W) 750
    Ball Screw ∅ (mm) 50
    High Rigidity Linear Guide(mm) W23xH18
    Outside EE-SX672(NPN)/
    FC-SPX303Z-2M(NPN)
    Home Sensor

    Sensor Layout:

    Allowable Overhang：

    Horizontal installation A B C Wall-mounted installation A B C
    Lead 45 kg 1588 600 349 Lead 40 kg 500 685 1805
    65 kg 1052 328 285 60 kg 315 430 1152
    85 kg 768 281 206 85 kg 206 281 768

    Static Loading Moment：

    Item Value (Unit: N.m)
    MY 2052
    MP 2052
    MR 1810

    The torque values shown in the table represent the center of gravity.
    The guaranteed service life is 10,000 km when the product is used normally in compliance with the specifications in the catalog.
    The standard specifications do not apply to ceiling-mounted inverted use. Please contact our sales team for details if required.

  • Product Structure:

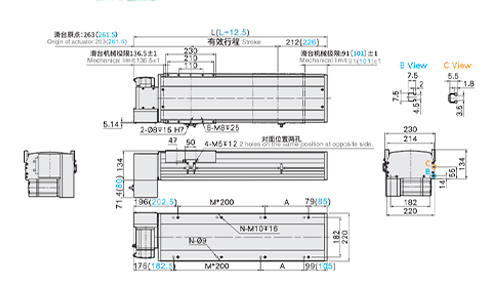

    Motor Right Side

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550
    L (L+2) 525 575 625 675 725 775 825 875 925 975 1025 1075 1125 1175 1225 1275 1325 1375 1425 1475 1525 1575 1625 1675 1725 1775 1825 1875 1925 1975 2025
    A 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150
    M 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6 6 7 7 7 7 8 8 8
    N 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14 16 16 16 16 18 18 18 18 20 20 20
    Weight (KG) 28.8 30 31.2 32.4 33.6 34.8 36 37.2 38.4 39.6 40.8 42 43.2 44.4 45.6 46.8 48 49.2 50.4 51.6 52.8 54 55.2 56.4 59.2 59.8 60 61.2 62.4 63.6 64.8

    Parameter 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050
    L (L+2) 2075 2125 2175 2225 2275 2325 2375 2425 2475 2525 2575 2625 2675 2725 2775 2825 2875 2925 2975 3025 3075 3125 3175 3225 3275 3325 3375 3425 3475 3525
    A 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50
    M 8 9 9 9 9 10 10 10 10 11 11 11 11 12 12 12 12 13 13 13 13 14 14 14 14 15 15 15 15 16
    N 20 22 22 22 22 24 24 24 24 26 26 26 26 28 28 28 28 30 30 30 30 32 32 32 32 34 34 34 34 36
    Weight (KG) 66 67.2 68.4 69.6 70.8 72 73.2 74.4 75.6 76.8 78 79.2 80.4 81.6 82.8 84 85.2 86.4 87.6 88.8 90 91.2 92.4 93.6 94.8 96 97.2 98.4 99.6 100.8

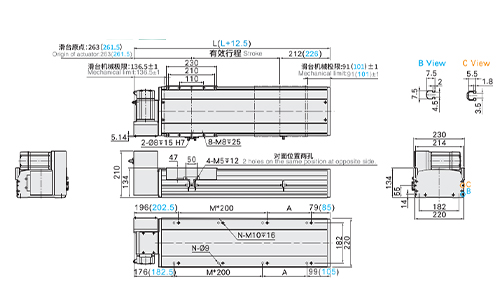

    Motor Right Upper Side

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550
    L (L+2) 525 575 625 675 725 775 825 875 925 975 1025 1075 1125 1175 1225 1275 1325 1375 1425 1475 1525 1575 1625 1675 1725 1775 1825 1875 1925 1975 2025
    A 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150
    M 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6 6 7 7 7 7 8 8 8
    N 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14 16 16 16 16 18 18 18 18 20 20 20
    Weight (KG) 28.8 30 31.2 32.4 33.6 34.8 36 37.2 38.4 39.6 40.8 42 43.2 44.4 45.6 46.8 48 49.2 50.4 51.6 52.8 54 55.2 56.4 59.2 59.8 60 61.2 62.4 63.6 64.8

    Parameter 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050
    L (L+2) 2075 2125 2175 2225 2275 2325 2375 2425 2475 2525 2575 2625 2675 2725 2775 2825 2875 2925 2975 3025 3075 3125 3175 3225 3275 3325 3375 3425 3475 3525
    A 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50
    M 8 9 9 9 9 10 10 10 10 11 11 11 11 12 12 12 12 13 13 13 13 14 14 14 14 15 15 15 15 16
    N 20 22 22 22 22 24 24 24 24 26 26 26 26 28 28 28 28 30 30 30 30 32 32 32 32 34 34 34 34 36
    Weight (KG) 66 67.2 68.4 69.6 70.8 72 73.2 74.4 75.6 76.8 78 79.2 80.4 81.6 82.8 84 85.2 86.4 87.6 88.8 90 91.2 92.4 93.6 94.8 96 97.2 98.4 99.6 100.8

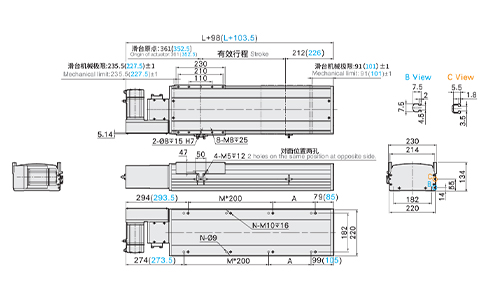

    Motor Right Lower Side

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550
    L (L+2) 525 575 625 675 725 775 825 875 925 975 1025 1075 1125 1175 1225 1275 1325 1375 1425 1475 1525 1575 1625 1675 1725 1775 1825 1875 1925 1975 2025
    A 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150
    M 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6 6 7 7 7 7 8 8 8
    N 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14 16 16 16 16 18 18 18 18 20 20 20
    Weight (KG) 28.8 30 31.2 32.4 33.6 34.8 36 37.2 38.4 39.6 40.8 42 43.2 44.4 45.6 46.8 48 49.2 50.4 51.6 52.8 54 55.2 56.4 59.2 59.8 60 61.2 62.4 63.6 64.8

    Parameter 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050
    L (L+2) 2075 2125 2175 2225 2275 2325 2375 2425 2475 2525 2575 2625 2675 2725 2775 2825 2875 2925 2975 3025 3075 3125 3175 3225 3275 3325 3375 3425 3475 3525
    A 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50
    M 8 9 9 9 9 10 10 10 10 11 11 11 11 12 12 12 12 13 13 13 13 14 14 14 14 15 15 15 15 16
    N 20 22 22 22 22 24 24 24 24 26 26 26 26 28 28 28 28 30 30 30 30 32 32 32 32 34 34 34 34 36
    Weight (KG) 66 67.2 68.4 69.6 70.8 72 73.2 74.4 75.6 76.8 78 79.2 80.4 81.6 82.8 84 85.2 86.4 87.6 88.8 90 91.2 92.4 93.6 94.8 96 97.2 98.4 99.6 100.8

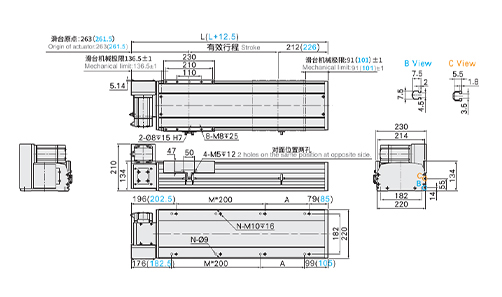

    Motor Left Side

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550
    L (L+2) 525 575 625 675 725 775 825 875 925 975 1025 1075 1125 1175 1225 1275 1325 1375 1425 1475 1525 1575 1625 1675 1725 1775 1825 1875 1925 1975 2025
    A 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150
    M 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6 6 7 7 7 7 8 8 8
    N 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14 16 16 16 16 18 18 18 18 20 20 20
    Weight (KG) 28.8 30 31.2 32.4 33.6 34.8 36 37.2 38.4 39.6 40.8 42 43.2 44.4 45.6 46.8 48 49.2 50.4 51.6 52.8 54 55.2 56.4 59.2 59.8 60 61.2 62.4 63.6 64.8

    Parameter 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050
    L (L+2) 2075 2125 2175 2225 2275 2325 2375 2425 2475 2525 2575 2625 2675 2725 2775 2825 2875 2925 2975 3025 3075 3125 3175 3225 3275 3325 3375 3425 3475 3525
    A 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50
    M 8 9 9 9 9 10 10 10 10 11 11 11 11 12 12 12 12 13 13 13 13 14 14 14 14 15 15 15 15 16
    N 20 22 22 22 22 24 24 24 24 26 26 26 26 28 28 28 28 30 30 30 30 32 32 32 32 34 34 34 34 36
    Weight (KG) 66 67.2 68.4 69.6 70.8 72 73.2 74.4 75.6 76.8 78 79.2 80.4 81.6 82.8 84 85.2 86.4 87.6 88.8 90 91.2 92.4 93.6 94.8 96 97.2 98.4 99.6 100.8

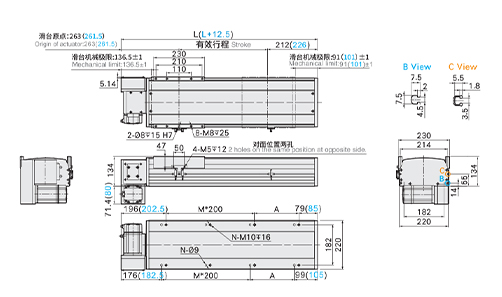

    Motor Left Upper Side

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550
    L (L+2) 525 575 625 675 725 775 825 875 925 975 1025 1075 1125 1175 1225 1275 1325 1375 1425 1475 1525 1575 1625 1675 1725 1775 1825 1875 1925 1975 2025
    A 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150
    M 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6 6 7 7 7 7 8 8 8
    N 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14 16 16 16 16 18 18 18 18 20 20 20
    Weight (KG) 28.8 30 31.2 32.4 33.6 34.8 36 37.2 38.4 39.6 40.8 42 43.2 44.4 45.6 46.8 48 49.2 50.4 51.6 52.8 54 55.2 56.4 59.2 59.8 60 61.2 62.4 63.6 64.8

    Parameter 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050
    L (L+2) 2075 2125 2175 2225 2275 2325 2375 2425 2475 2525 2575 2625 2675 2725 2775 2825 2875 2925 2975 3025 3075 3125 3175 3225 3275 3325 3375 3425 3475 3525
    A 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50
    M 8 9 9 9 9 10 10 10 10 11 11 11 11 12 12 12 12 13 13 13 13 14 14 14 14 15 15 15 15 16
    N 20 22 22 22 22 24 24 24 24 26 26 26 26 28 28 28 28 30 30 30 30 32 32 32 32 34 34 34 34 36
    Weight (KG) 66 67.2 68.4 69.6 70.8 72 73.2 74.4 75.6 76.8 78 79.2 80.4 81.6 82.8 84 85.2 86.4 87.6 88.8 90 91.2 92.4 93.6 94.8 96 97.2 98.4 99.6 100.8

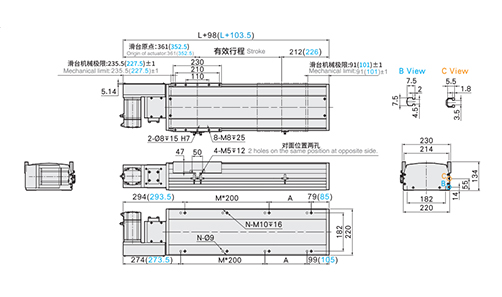

    Motor Left Lower Side

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550
    L (L+2) 525 575 625 675 725 775 825 875 925 975 1025 1075 1125 1175 1225 1275 1325 1375 1425 1475 1525 1575 1625 1675 1725 1775 1825 1875 1925 1975 2025
    A 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150
    M 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6 6 7 7 7 7 8 8 8
    N 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14 16 16 16 16 18 18 18 18 20 20 20
    Weight (KG) 28.8 30 31.2 32.4 33.6 34.8 36 37.2 38.4 39.6 40.8 42 43.2 44.4 45.6 46.8 48 49.2 50.4 51.6 52.8 54 55.2 56.4 59.2 59.8 60 61.2 62.4 63.6 64.8

    Parameter 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600 2650 2700 2750 2800 2850 2900 2950 3000 3050
    L (L+2) 2075 2125 2175 2225 2275 2325 2375 2425 2475 2525 2575 2625 2675 2725 2775 2825 2875 2925 2975 3025 3075 3125 3175 3225 3275 3325 3375 3425 3475 3525
    A 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50
    M 8 9 9 9 9 10 10 10 10 11 11 11 11 12 12 12 12 13 13 13 13 14 14 14 14 15 15 15 15 16
    N 20 22 22 22 22 24 24 24 24 26 26 26 26 28 28 28 28 30 30 30 30 32 32 32 32 34 34 34 34 36
    Weight (KG) 66 67.2 68.4 69.6 70.8 72 73.2 74.4 75.6 76.8 78 79.2 80.4 81.6 82.8 84 85.2 86.4 87.6 88.8 90 91.2 92.4 93.6 94.8 96 97.2 98.4 99.6 100.8

  • Suitable Motor Brand:

    Options of Stepper Motors

    Brand Mark Brake Type Motor Power (Watt) AC-Voltage Motor Model Driver Model
    Mitsubishi M No Brake (Horizontal Type) 750 220 HG-KN73J-S100 MR-JE-70A
    Panasonic P No Brake (Horizontal Type) 750 220 MHMF082L1U2M MCDLN35SE
    Delta T No Brake (Horizontal Type) 750 220 ECM-B3M-C20807RS1 ASD-B3-0721-L

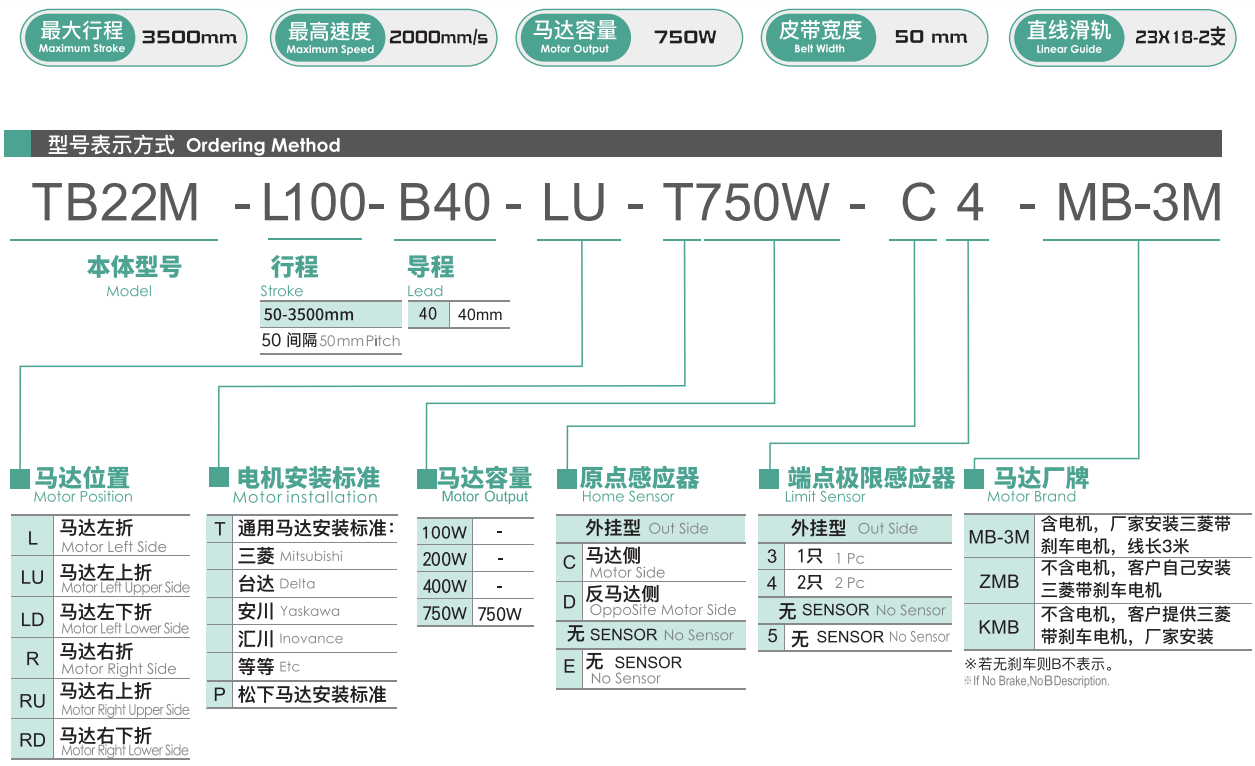

  • Model Explanation:

=
