2080mm/s High-Speed Precision Belt Driven Linear Module

This High-Speed Precision Belt Driven Linear Module is engineered for high-speed automated production lines. Equipped with a synchronous toothed belt drive system, it achieves a maximum speed of up to 2080mm/s with repeat positioning accuracy of ±0.04mm. It is ideal for high-speed sorting, handling, and assembly tasks in 3C electronics, photovoltaic components, and food packaging industries.
The module features a high-strength aluminum extrusion structure that delivers excellent rigidity in a compact design. Built-in precision linear guides and sliding blocks ensure stable movement and low noise during high-speed operation. This model is designed for servo motor use and can be combined with other modules to build multi-axis motion systems.
Each Belt Driven Linear Module undergoes strict dynamic balancing and aging tests to ensure stable performance and long service life in continuous high-speed working conditions.

E-mail: [email protected]
    Inquiry Us
PREV：3500mm Long-Stroke Industrial Belt Driven Linear Module
NEXT：No next article

  • Specifications:

    Category Item Specification
    Spec Repeatability (mm) ±0.04
    Ball Screw Lead (mm) 41.6
    Maximum Speed (mm/s) 2080
    Maximum Payload (Horizontal, kg) 10
    Maximum Payload (Vertical, kg) 3
    Rated Thrust (N) 61
    Stroke Pitch (mm) 50-2550 mm/50interval, 50 mm Pitch
    Parts AC Servo Motor Output (W) 200
    Ball Screw ∅ (mm) 15
    High Rigidity Linear Guide(mm) W20xH18
    Outside EE-SX672(NPN)/
    FC-SPX303Z-2M(NPN)
    Home Sensor

    Sensor Layout:

    Allowable Overhang：

    Horizontal installation A B C Wall-mounted installation A B C
    Lead 5kg 495 152 128 Lead 4kg 162 192 625
    8kg 301 91 77 7kg 89 106 347
    10kg 236 71 60 10kg 60 71 236

    Static Loading Moment：

    Item Value (Unit: N.m)
    MY 110
    MP 110
    MR 120

    The torque values shown in the table represent the center of gravity.
    The guaranteed service life is 10,000 km when the product is used normally in compliance with the specifications in the catalog.
    The standard specifications do not apply to ceiling-mounted inverted use. Please contact our sales team for details if required.

  • Product Structure:

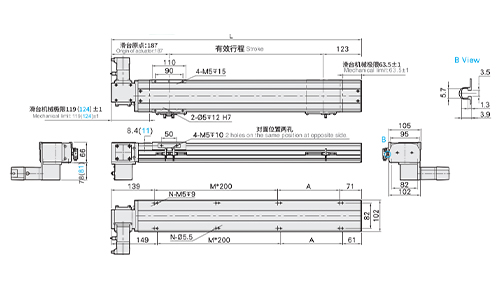

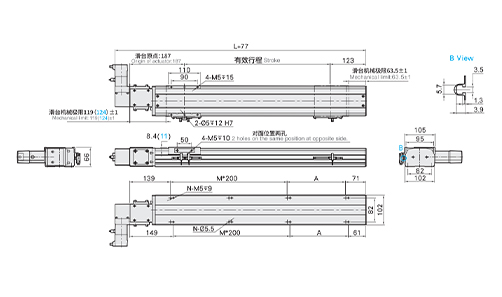

    Motor Right Side

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300
    L 360 410 460 510 560 610 660 710 760 810 860 910 960 1010 1060 1110 1160 1210 1260 1310 1360 1410 1460 1510 1560 1610
    A 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200
    M 0 0 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6 6
    N 4 4 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14 16 16 16 16
    Weight (KG) 6.37 6.8 7.23 7.65 8.07 8.5 8.92 9.34 9.76 10.19 10.61 11.03 11.46 11.88 12.3 12.73 13.15 13.57 13.99 14.42 14.84 15.26 15.68 16.1 16.52 16.94



    Parameter 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550
    L 1660 1710 1760 1810 1860 1910 1960 2010 2060 2110 2160 2210 2260 2310 2360 2410 2460 2510 2560 2610 2660 2710 2760 2810 2860
    A 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50
    M 7 7 7 7 8 8 8 8 9 9 9 9 10 10 10 10 11 11 11 11 12 12 12 12 13
    N 18 18 18 18 20 20 20 20 22 22 22 22 24 24 24 24 26 26 26 26 28 28 28 28 30
    Weight (KG) 17.36 17.78 18.2 18.62 19.04 19.46 19.88 20.3 20.72 21.14 21.56 21.98 22.4 22.82 23.24 23.66 24.08 24.5 24.92 25.34 25.76 26.18 26.6 27.02 27.44

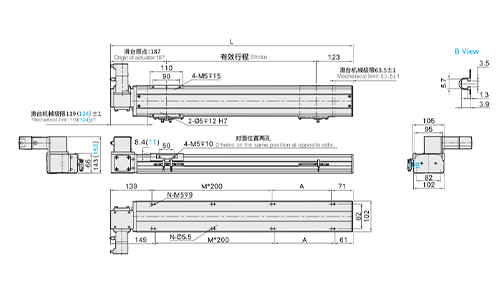

    Motor Right Upper Side

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300
    L 360 410 460 510 560 610 660 710 760 810 860 910 960 1010 1060 1110 1160 1210 1260 1310 1360 1410 1460 1510 1560 1610
    A 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200
    M 0 0 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6 6
    N 4 4 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14 16 16 16 16
    Weight (KG) 6.37 6.8 7.23 7.65 8.07 8.5 8.92 9.34 9.76 10.19 10.61 11.03 11.46 11.88 12.3 12.73 13.15 13.57 13.99 14.42 14.84 15.26 15.68 16.1 16.52 16.94

    Parameter 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550
    L 1660 1710 1760 1810 1860 1910 1960 2010 2060 2110 2160 2210 2260 2310 2360 2410 2460 2510 2560 2610 2660 2710 2760 2810 2860
    A 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50
    M 7 7 7 7 8 8 8 8 9 9 9 9 10 10 10 10 11 11 11 11 12 12 12 12 13
    N 18 18 18 18 20 20 20 20 22 22 22 22 24 24 24 24 26 26 26 26 28 28 28 28 30
    Weight (KG) 17.36 17.78 18.2 18.62 19.04 19.46 19.88 20.3 20.72 21.14 21.56 21.98 22.4 22.82 23.24 23.66 24.08 24.5 24.92 25.34 25.76 26.18 26.6 27.02 27.44

    Motor Right Lower Side

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300
    L 360 410 460 510 560 610 660 710 760 810 860 910 960 1010 1060 1110 1160 1210 1260 1310 1360 1410 1460 1510 1560 1610
    A 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200
    M 0 0 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6 6
    N 4 4 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14 16 16 16 16
    Weight (KG) 6.37 6.8 7.23 7.65 8.07 8.5 8.92 9.34 9.76 10.19 10.61 11.03 11.46 11.88 12.3 12.73 13.15 13.57 13.99 14.42 14.84 15.26 15.68 16.1 16.52 16.94



    Parameter 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550
    L 1660 1710 1760 1810 1860 1910 1960 2010 2060 2110 2160 2210 2260 2310 2360 2410 2460 2510 2560 2610 2660 2710 2760 2810 2860
    A 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50
    M 7 7 7 7 8 8 8 8 9 9 9 9 10 10 10 10 11 11 11 11 12 12 12 12 13
    N 18 18 18 18 20 20 20 20 22 22 22 22 24 24 24 24 26 26 26 26 28 28 28 28 30
    Weight (KG) 17.36 17.78 18.2 18.62 19.04 19.46 19.88 20.3 20.72 21.14 21.56 21.98 22.4 22.82 23.24 23.66 24.08 24.5 24.92 25.34 25.76 26.18 26.6 27.02 27.44

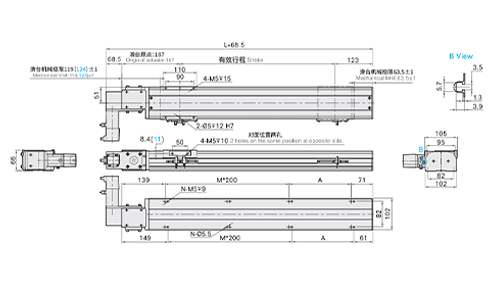

    Motor Left Side

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300
    L 360 410 460 510 560 610 660 710 760 810 860 910 960 1010 1060 1110 1160 1210 1260 1310 1360 1410 1460 1510 1560 1610
    A 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200
    M 0 0 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6 6
    N 4 4 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14 16 16 16 16
    Weight (KG) 6.37 6.8 7.23 7.65 8.07 8.5 8.92 9.34 9.76 10.19 10.61 11.03 11.46 11.88 12.3 12.73 13.15 13.57 13.99 14.42 14.84 15.26 15.68 16.1 16.52 16.94



    Parameter 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550
    L 1660 1710 1760 1810 1860 1910 1960 2010 2060 2110 2160 2210 2260 2310 2360 2410 2460 2510 2560 2610 2660 2710 2760 2810 2860
    A 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50
    M 7 7 7 7 8 8 8 8 9 9 9 9 10 10 10 10 11 11 11 11 12 12 12 12 13
    N 18 18 18 18 20 20 20 20 22 22 22 22 24 24 24 24 26 26 26 26 28 28 28 28 30
    Weight (KG) 17.36 17.78 18.2 18.62 19.04 19.46 19.88 20.3 20.72 21.14 21.56 21.98 22.4 22.82 23.24 23.66 24.08 24.5 24.92 25.34 25.76 26.18 26.6 27.02 27.44

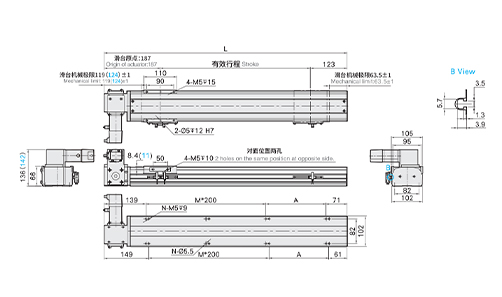

    Motor Left Upper Side

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300
    L 360 410 460 510 560 610 660 710 760 810 860 910 960 1010 1060 1110 1160 1210 1260 1310 1360 1410 1460 1510 1560 1610
    A 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200
    M 0 0 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6 6
    N 4 4 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14 16 16 16 16
    Weight (KG) 6.37 6.8 7.23 7.65 8.07 8.5 8.92 9.34 9.76 10.19 10.61 11.03 11.46 11.88 12.3 12.73 13.15 13.57 13.99 14.42 14.84 15.26 15.68 16.1 16.52 16.94

    Parameter 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550
    L 1660 1710 1760 1810 1860 1910 1960 2010 2060 2110 2160 2210 2260 2310 2360 2410 2460 2510 2560 2610 2660 2710 2760 2810 2860
    A 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50
    M 7 7 7 7 8 8 8 8 9 9 9 9 10 10 10 10 11 11 11 11 12 12 12 12 13
    N 18 18 18 18 20 20 20 20 22 22 22 22 24 24 24 24 26 26 26 26 28 28 28 28 30
    Weight (KG) 17.36 17.78 18.2 18.62 19.04 19.46 19.88 20.3 20.72 21.14 21.56 21.98 22.4 22.82 23.24 23.66 24.08 24.5 24.92 25.34 25.76 26.18 26.6 27.02 27.44

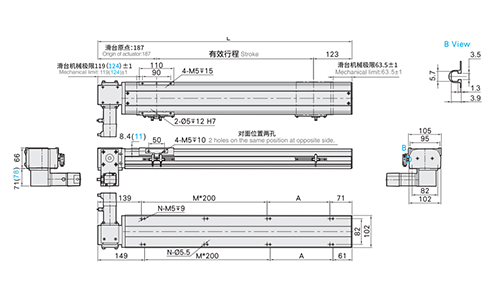

    Motor Left Lower Side

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300
    L 360 410 460 510 560 610 660 710 760 810 860 910 960 1010 1060 1110 1160 1210 1260 1310 1360 1410 1460 1510 1560 1610
    A 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200
    M 0 0 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6 6
    N 4 4 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14 16 16 16 16
    Weight (KG) 6.37 6.8 7.23 7.65 8.07 8.5 8.92 9.34 9.76 10.19 10.61 11.03 11.46 11.88 12.3 12.73 13.15 13.57 13.99 14.42 14.84 15.26 15.68 16.1 16.52 16.94



    Parameter 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200 2250 2300 2350 2400 2450 2500 2550
    L 1660 1710 1760 1810 1860 1910 1960 2010 2060 2110 2160 2210 2260 2310 2360 2410 2460 2510 2560 2610 2660 2710 2760 2810 2860
    A 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50
    M 7 7 7 7 8 8 8 8 9 9 9 9 10 10 10 10 11 11 11 11 12 12 12 12 13
    N 18 18 18 18 20 20 20 20 22 22 22 22 24 24 24 24 26 26 26 26 28 28 28 28 30
    Weight (KG) 17.36 17.78 18.2 18.62 19.04 19.46 19.88 20.3 20.72 21.14 21.56 21.98 22.4 22.82 23.24 23.66 24.08 24.5 24.92 25.34 25.76 26.18 26.6 27.02 27.44

  • Suitable Motor Brand:

    Options of Stepper Motors

    Brand Mark Brake Type Motor Power (Watt) AC-Voltage Motor Model Driver Model
    Mitsubishi M No Brake (Horizontal Type) 200 220 HG-KN23J-S100 MR-JE-20A
    Panasonic P No Brake (Horizontal Type) 200 220 MHMF022L1U2M MADLN15SE
    Delta T No Brake (Horizontal Type) 200 220 ECM-B3M-C20602RS1 ASD-B3-0221-L

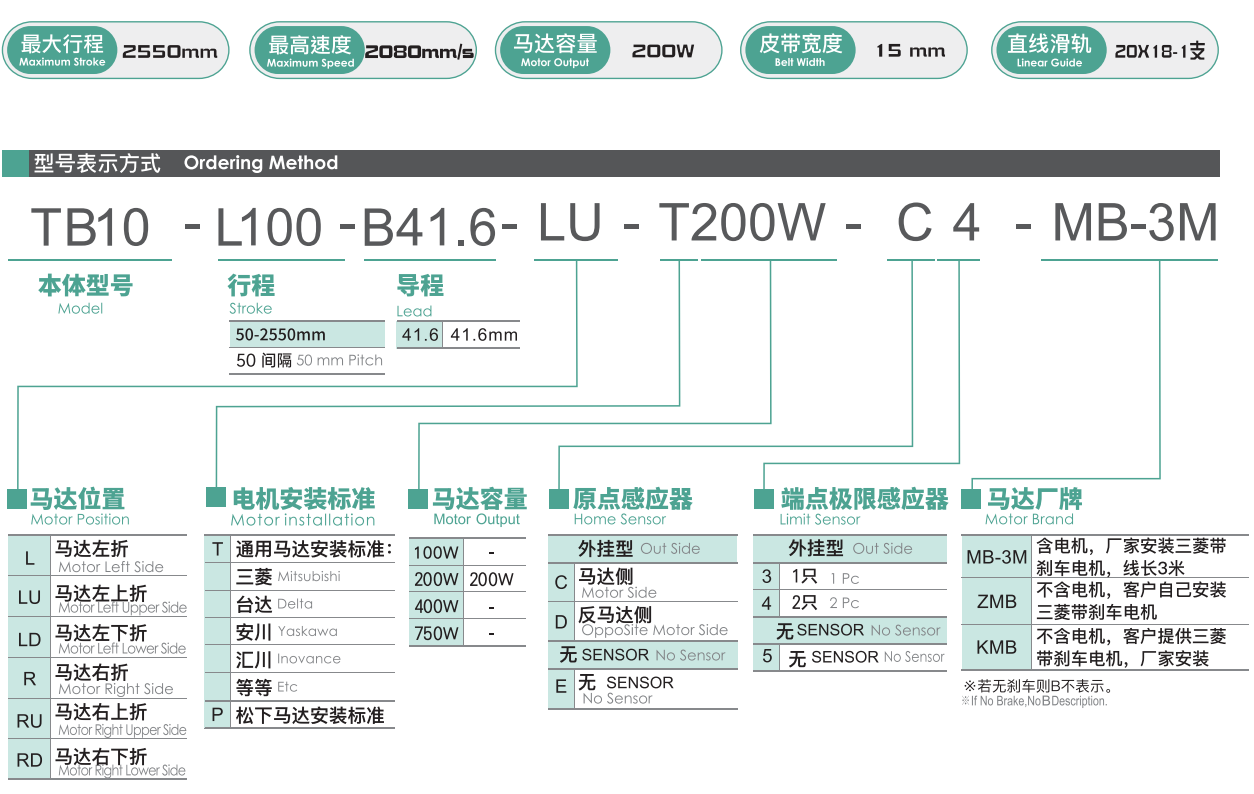

  • Model Explanation:

=
