Precision Positioning Two-Degree-of-Freedom Platform

Product features：
01. Deep Customization Service, Adapting to Various Application Scenarios
Provide non-standard customization for 3/6-degree-of-freedom and other platforms. With industry experience, we can adapt design from site, scenario and appearance according to customer needs, and tailor exclusive solutions for college teaching, scientific research, industrial inspection, VR experience and other fields.

02. Modular Structure Design, More Convenient and Efficient Maintenance
The whole series adopts modular design, with core hardware independently R&D and produced, simplifying the composition of key components. Core components are easy to replace, reducing downtime losses, lowering maintenance costs and improving long-term operation stability.

03. Reliable Design Concept, Balancing Precision and Safety
With mature design experience for high-precision and heavy-load scenarios, we optimize mechanical structure through PRO/E, MATLAB simulation and mechanical analysis, ensuring product precision, load-bearing capacity and stability, and strictly guaranteeing use safety for scientific research, industry and other high-end fields.

04. Simple and Easy to Operate, Supporting Multiple Types of Communication Methods

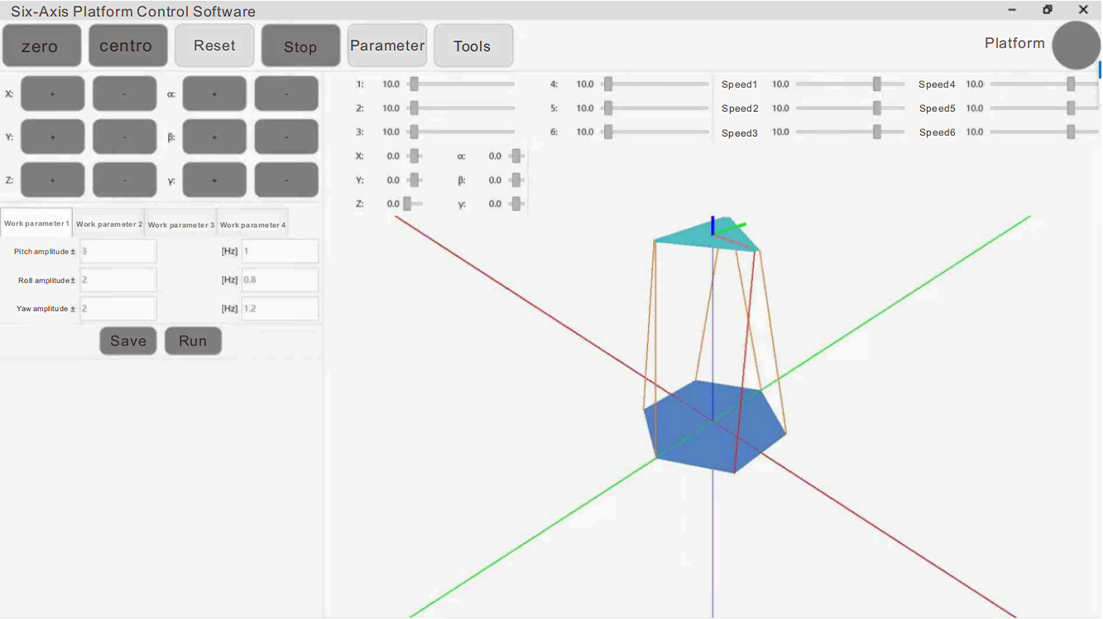

Software docking is simple and intuitive, easy to get started. Motion acquisition software supports linear compilation to ensure smooth movement without jamming; equipped with multiple secondary development interfaces, compatible with UDP, TCP/IP, serial port, Wifi and other communication methods to flexibly connect various devices.

05. Continuous Iteration and Update, Ensuring Long-term Use Value
Attach importance to technological upgrading, continuously iterate and optimize core algorithms, update upper computer software synchronously, support customers to download and update online, allowing customers to enjoy the latest technological achievements and adapt to industry development and demand upgrading.

Introduction to core software and hardware：
I. Core Advantages of Software System
1. Fast Response: Adopt EtherCAT bus, fast response and large data transmission, ensuring stable and low-latency platform, suitable for high-frequency linkage.
2. Precise Control: Equipped with leading domestic parallel algorithms, combined with accurate modeling and high underlying data circulation, ensuring precise and efficient control.
3. Stable and Easy to Use: Software tested and optimized repeatedly, reliable operation, long-term use, reducing operation and maintenance costs.

II. Core Parameters of Motor and Driver
1. Brand Adaptation: Supports ABB, Panasonic, Yaskawa, Delta, Dongling and other common brands, flexibly adapting to supporting needs.
2. Power Selection: Core selection basis, related to load capacity and platform cost, customizable on demand.
3. Speed Impact: Core power, directly determining the change rate of platform angle and displacement, adapting to different scenarios.

III. Core Parameters of Electric Cylinder
1. Lead Parameter: Under the same conditions, the larger the lead, the faster the platform runs.
2. Stroke Range: Under the same conditions, the larger the stroke, the larger the platform volume and pose change range.
3. Strength Guarantee: Select suitable electric cylinders through strength check, affecting platform movement rate and stability.
