4D/5D Dynamic Motion Theater Seat System

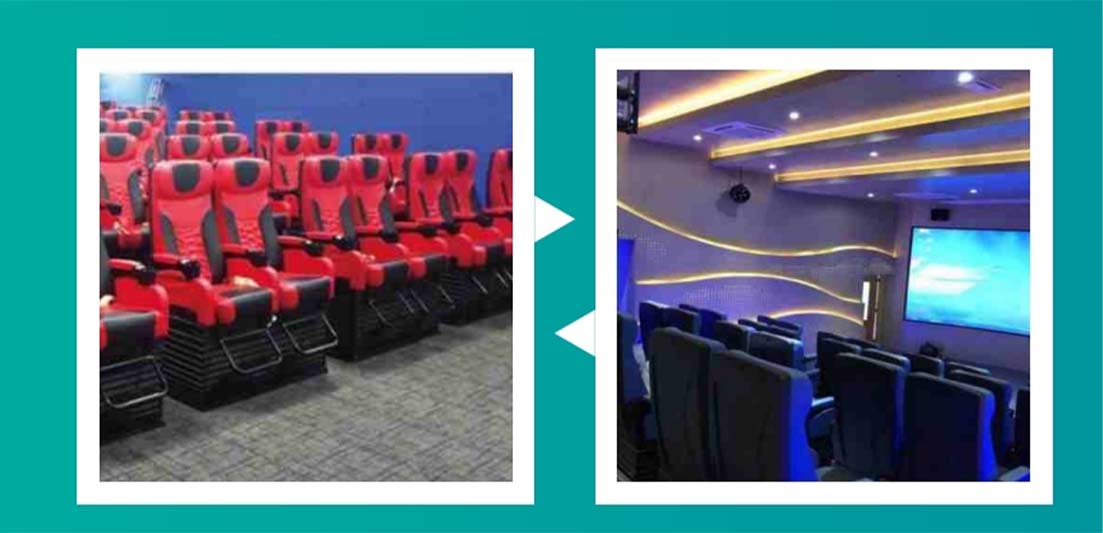

This 4D/5D dynamic motion theater seat system is a professional immersive entertainment solution tailored for theme parks, science museums, and commercial cinema complexes. Engineered with a robust fixed-base structure and high-precision servo control, it delivers realistic motion feedback including vibration, lifting, pitching, and rolling, perfectly synchronizing with on-screen action to enhance audience engagement.
Featuring a sleek, ergonomic design with high-quality leather upholstery, the seats offer exceptional comfort and firm support to ensure a safe and enjoyable experience during intense simulations. The system supports multi-seat linkage control, programmable motion modes, and comprehensive safety protection, making it suitable for high-capacity audience loading. Its durable construction and low maintenance design make it the ideal core equipment for upgrading traditional cinemas into immersive 4D/5D experience venues.

E-mail: [email protected]
    Inquiry Us
PREV：Large Format Flying Theater Motion Platform System
NEXT：No next article
  • Degree of freedom Angle or Displacement Speed Acceleration Positioning accuracy Repeat positioning accuracy
    Pitch (α) ±5° ~ ±60° ≤50°/s 100°/s² 0.03° 0.03°
    Roll (β) ±5° ~ ±60° ≤50°/s 100°/s² 0.03° 0.03°
    Yaw (γ) ±5° ~ ±60° ≤50°/s 100°/s² 0.03° 0.03°
    Lateral displacement (x) ±10mm ~ ±450mm ≤1000mm/s ≤2.0g 0.03mm 0.01mm
    Longitudinal displacement (y) ±10mm ~ ±450mm ≤1000mm/s ≤2.0g 0.03mm 0.01mm
    Vertical lift (z) ±10mm ~ ±800mm ≤1000mm/s ≤2.0g 0.03mm 0.01mm
    Other technical parameters

    1. System response frequency: 0Hz–20Hz
    2. Run parameters: ≤0.02mm
    3. Drift: The platform system runs continuously for more than 12 hours, the position drift of any one cylinder will not exceed 0.0025 m
    Control system

    1. The control system of the motion platform is controlled by an EtherCAT bus. Core hardware self-production, bus-type servo motor, platform control software, and so on.
    2. The platform integrates the mechanical concept of a high-dynamic ball screw, the perfect simulation and design ability, and realizes the higher motion reliability of the platform.
    3. The platform control software can be non-calibrated, and the self-developed core algorithm achieves the target of high schedule performance after many years of iterative optimization. In addition, an optional matching algorithm, a special effects module algorithm, etc., to provide customers with a set of solutions close to their needs.

  • Software Interface

    Drawings

    Technical Specifications

    Form: Backtrack or direct connection Size:0.5-8 sqm Power:400W-22kW motor
    Diameter of screw: 12-80mm Weight:60-4000kg RPM range:1500-3000 rpm
    Lead Screw: 5-32mm Effective load:200-15000kg Torque:1.27-140Nm
    Range: 70-800mm Transverse displacement:± 10-450mm Supply voltage: Single or three-phase
    Rated output: 1-150KN Longitudinal displacement:± 10-450mm
    Deceleration ratio: 0.5-10 Vertical rise and fall:± 10-800mm
    Installation: Front and rear fork hinge/flange/trunnion Pitch/roll/yaw:± 5-60°
    Noise: < 65 dB Average trouble-free working time:> 6000H
    Rated speed: 133~1000 mm/sec
