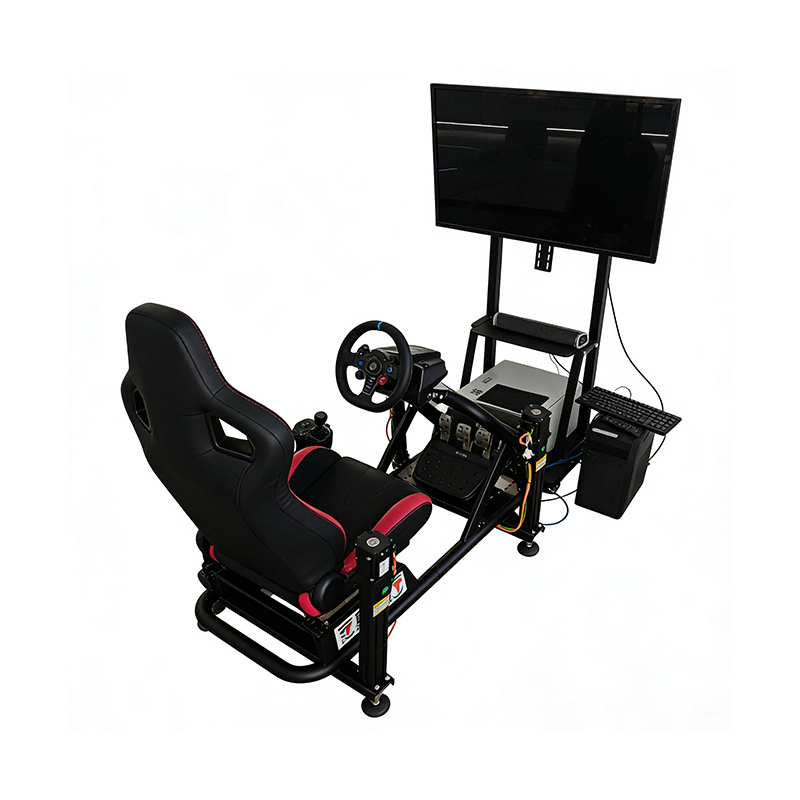

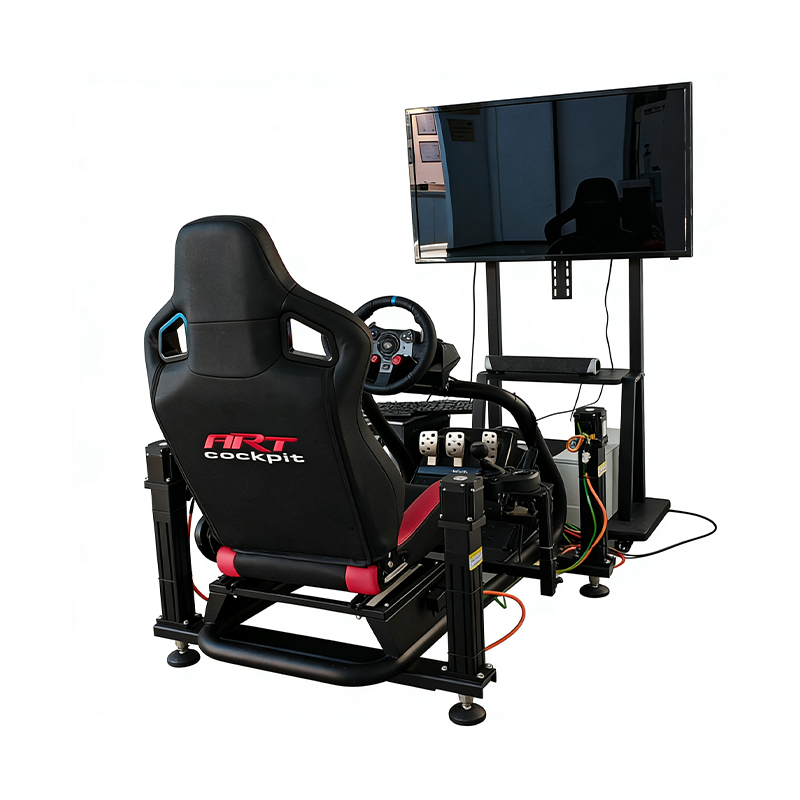

4DOF G-Force Dynamic Seat Simulation Platform

This professional 4-degree-of-freedom (4DOF) dynamic simulation platform delivers an immersive high-precision driving experience tailored for commercial experience centers, professional simulation training scenarios and automotive enthusiast display projects.
Featuring a high-support racing-style cockpit design and industrial-grade metal frame structure, it ensures exceptional stability and long-term durable use. Equipped with integrated high-precision sensors and advanced motion control algorithms, it accurately restores core driving feedback including pitching, rolling and acceleration sensations, fully aligning with real driving scene requirements.
The platform supports seamless integration with mainstream automotive simulation software and driving data systems, featuring flexible parameter adjustment and comprehensive data logging functions to meet diverse professional testing and training needs. Its compact and space-saving layout is suitable for indoor venues of various scales, while the built-in safety protection system guarantees secure and stable operation during long-duration work.
It serves as an ideal professional-grade experience device, effectively improving user engagement and experience satisfaction for automotive brand display, technical training and scientific research experiment scenarios.

E-mail: [email protected]
    Inquiry Us
PREV：No previous article
NEXT：3DOF G-Force Dynamic Seat Simulation Platform
  • Degree of freedom Angle or Displacement Speed Acceleration Positioning accuracy Repeat positioning accuracy
    Pitch (α) ±5° ~ ±60° ≤50°/s 100°/s² 0.03° 0.03°
    Roll (β) ±5° ~ ±60° ≤50°/s 100°/s² 0.03° 0.03°
    Yaw (γ) ±5° ~ ±60° ≤50°/s 100°/s² 0.03° 0.03°
    Lateral displacement (x) ±10mm ~ ±450mm ≤1000mm/s ≤2.0g 0.03mm 0.01mm
    Longitudinal displacement (y) ±10mm ~ ±450mm ≤1000mm/s ≤2.0g 0.03mm 0.01mm
    Vertical lift (z) ±10mm ~ ±800mm ≤1000mm/s ≤2.0g 0.03mm 0.01mm
    Other technical parameters

    1. System response frequency: 0Hz–20Hz
    2. Run parameters: ≤0.02mm
    3. Drift: The platform system runs continuously for more than 12 hours, the position drift of any one cylinder will not exceed 0.0025 m
    Control system

    1. The control system of the motion platform is controlled by an EtherCAT bus. Core hardware self-production, bus-type servo motor, platform control software, and so on.
    2. The platform integrates the mechanical concept of a high-dynamic ball screw, the perfect simulation and design ability, and realizes the higher motion reliability of the platform.
    3. The platform control software can be non-calibrated, and the self-developed core algorithm achieves the target of high schedule performance after many years of iterative optimization. In addition, an optional matching algorithm, a special effects module algorithm, etc., to provide customers with a set of solutions close to their needs.

  • Software Interface

    Drawings

    Technical Specifications

    Form: Backtrack or direct connection Size:0.3-6 sqm Power:400W-22kW motor
    Diameter of screw: 12-80mm Weight:40-2000kg RPM range:1500-3000 rpm
    Lead Screw: 5-32mm Effective load:100-5000kg Torque:1.27-140Nm
    Range: 75-500mm Transverse displacement:± 10-800mm Supply voltage: Single or three-phase
    Rated output: 1-150KN Pitch: 3-30°
    Deceleration ratio: 0.5-10 Roll:± 3°-30°
    Installation: Front and rear fork hinge/flange/trunnion Average trouble-free working time:> 6000H
    Rated speed: 133~1000 mm/sec
    Rated speed: 133~1000 mm/sec
