EtherCAT Bus Industrial Four-Degree-of-Freedom Platform

Product features：
01. Customized Solutions, Adapting to Full-scenario Applications
Focus on non-standard customization of 3/6-degree-of-freedom platforms. Combined with in-depth industry experience, provide in-depth customization solutions according to customer site, scenario and appearance needs, accurately adapting to personalized needs in teaching demonstration, scientific research, industrial inspection, VR entertainment and other fields.

02. Modular Integrated Design, Efficient and Low-cost Maintenance
The whole set adopts modular integrated design, with core hardware independently R&D and produced, simplifying equipment internal structure. Core components are easy to replace, reducing downtime, lowering maintenance costs, and improving operation efficiency and stability.

03. Reliable Structural Design, Balancing Precision and Safety
With design experience in high-precision and heavy-load scenarios, optimize mechanical structure through PRO/E, MATLAB simulation tests and mechanical analysis, ensuring product precision, load-bearing capacity and stability meet industry standards, and strictly guaranteeing use safety.

04. Convenient Operation Experience, Supporting Multiple Communication Methods
Software docking is simple and efficient, easy to get started. Motion acquisition software supports linear compilation to ensure smooth movement without jamming; equipped with multiple secondary development interfaces, supporting various communication methods to flexibly connect control equipment and simulation software.

05. Continuous Technological Upgrading, Ensuring Long-term Adaptability
Attach importance to technological innovation and iteration, continuously optimize core algorithms, regularly update upper computer software. Customers can update online for free, enjoy the latest technological achievements, ensuring product adaptation to industry development and demand upgrading.

Introduction to core software and hardware：

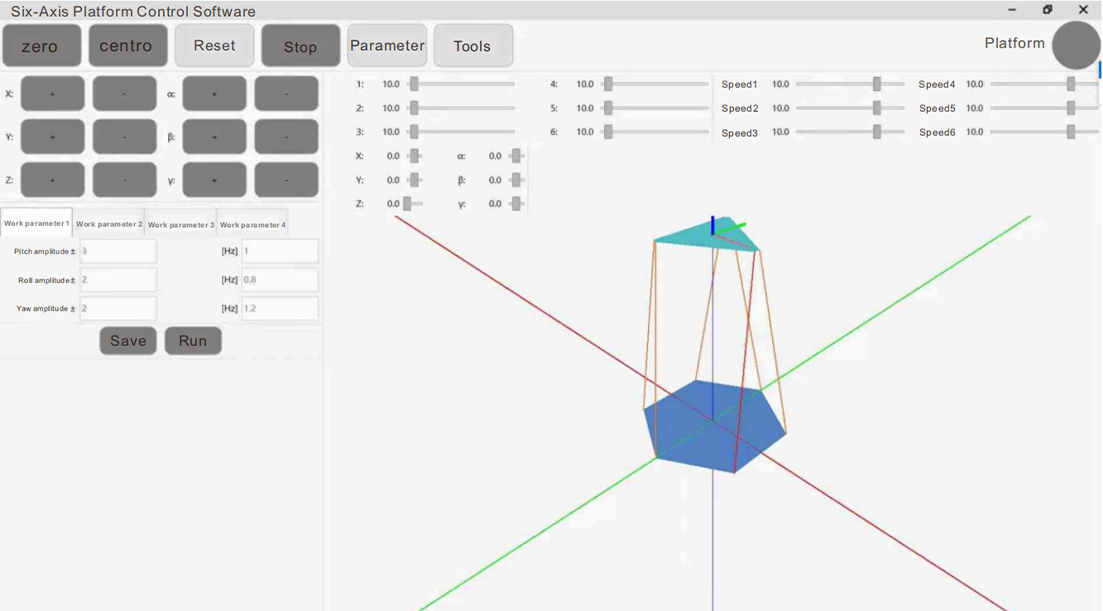

I. Advantage Analysis of Software System
1. High-Speed and Stable Communication: EtherCAT bus, excellent response and large transmission, ensuring low latency and high stability for complex scenarios.
2. Precise and Efficient Control: Use leading parallel algorithms with accurate modeling to improve control precision and efficiency for high-end needs.
3. Reliable and Easy to Use: Software optimized repeatedly, stable operation, less failure, easy to operate, reducing maintenance and getting started difficulty.

II. Parameter Description of Motor and Driver
1. Flexible Brand Selection: Supports ABB, Panasonic and other mainstream brands, flexible selection according to supporting conditions.
2. Power Correlation Characteristics: Related to load and cost, optimal matching of performance and cost by reasonable selection.
3. Speed Impact Function: Core power, directly determining the change rate of platform angle and displacement.

III. Detailed Explanation of Electric Cylinder Parameters
1. Lead Parameter Impact: Under the same conditions, the larger the lead, the faster the platform runs, suitable for high-speed operation.
2. Stroke Range Characteristics: Under the same conditions, the larger the stroke, the wider the platform pose change.
3. Strength Check Guarantee: Select suitable electric cylinders through strength check, ensuring movement rate and stability.
