High Precision Six Degrees of Freedom Flight Simulation Platform

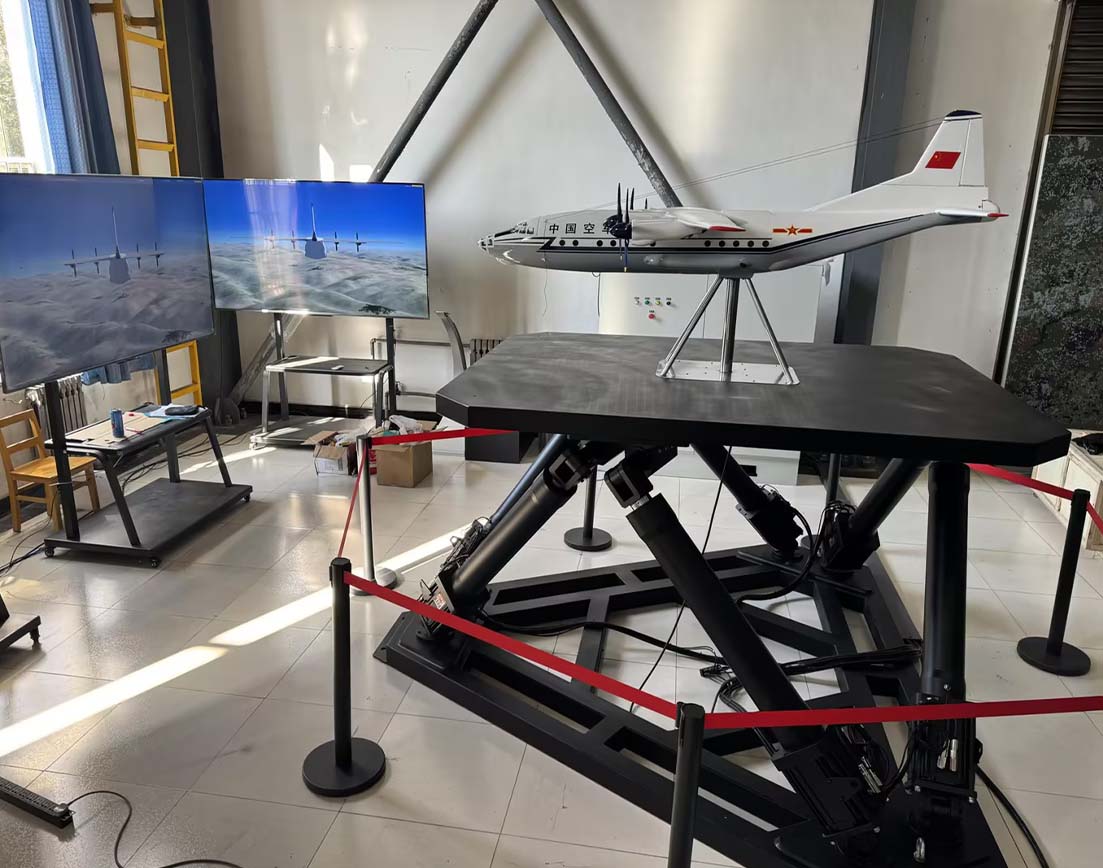

This high-precision six-degree-of-freedom flight simulation platform delivers an ultra-realistic, immersive flight experience for training centers, aviation exhibitions, science museums, and commercial entertainment venues. It adopts a high-stability mechanical structure, precise servo control system, and smooth attitude response to accurately simulate takeoff, climbing, turning, descending, and turbulence during flight. The platform supports real-time data feedback, programmable motion modes, and flexible scene docking, making it suitable for professional flight simulation training, immersive experience projects, and science popularization education. With low noise, strong stability, long service life, and easy operation, it provides a safe, reliable, and highly realistic simulation solution for aviation enthusiasts, training institutions, and exhibition venues.

E-mail: [email protected]
    Inquiry Us
PREV：Multi‑Function Dynamic Flight Simulation Platform
NEXT：No next article
  • Degree of freedom Angle or Displacement Speed Acceleration Positioning accuracy Repeat positioning accuracy
    Pitch (α) ±5° ~ ±60° ≤50°/s 100°/s² 0.03° 0.03°
    Roll (β) ±5° ~ ±60° ≤50°/s 100°/s² 0.03° 0.03°
    Yaw (γ) ±5° ~ ±60° ≤50°/s 100°/s² 0.03° 0.03°
    Lateral displacement (x) ±10mm ~ ±450mm ≤1000mm/s ≤2.0g 0.03mm 0.01mm
    Longitudinal displacement (y) ±10mm ~ ±450mm ≤1000mm/s ≤2.0g 0.03mm 0.01mm
    Vertical lift (z) ±10mm ~ ±800mm ≤1000mm/s ≤2.0g 0.03mm 0.01mm
    Other technical parameters

    1. System response frequency: 0Hz–20Hz
    2. Run parameters: ≤0.02mm
    3. Drift: The platform system runs continuously for more than 12 hours, the position drift of any one cylinder will not exceed 0.0025 m
    Control system

    1. The control system of the motion platform is controlled by an EtherCAT bus. Core hardware self-production, bus-type servo motor, platform control software, and so on.
    2. The platform integrates the mechanical concept of a high-dynamic ball screw, the perfect simulation and design ability, and realizes the higher motion reliability of the platform.
    3. The platform control software can be non-calibrated, and the self-developed core algorithm achieves the target of high schedule performance after many years of iterative optimization. In addition, an optional matching algorithm, a special effects module algorithm, etc., to provide customers with a set of solutions close to their needs.

  • Software Interface

    Drawings

    Technical Specifications

    Form: Backtrack or direct connection Size:0.5-8 sqm Power:400W-22kW motor
    Diameter of screw: 12-80mm Weight:60-4000kg RPM range:1500-3000 rpm
    Lead Screw: 5-32mm Effective load:200-15000kg Torque:1.27-140Nm
    Range: 70-800mm Transverse displacement:± 10-450mm Supply voltage: Single or three-phase
    Rated output: 1-150KN Longitudinal displacement:± 10-450mm
    Deceleration ratio: 0.5-10 Vertical rise and fall:± 10-800mm
    Installation: Front and rear fork hinge/flange/trunnion Pitch/roll/yaw:± 5-60°
    Noise: < 65 dB Average trouble-free working time:> 6000H
    Rated speed: 133~1000 mm/sec
