Dual Linear Guide Rail Ball Screw Linear Module

Our Dual Linear Guide Rail Ball Screw Linear Module is equipped with two parallel high-precision linear guide rails, which greatly improves the overall rigidity and movement stability of the module compared with single guide rail models. The Ball Screw Linear Module distributes the load evenly through the dual guide rail structure, reducing the wear of transmission components and extending the service life of the module. This Ball Screw Linear Module maintains excellent positioning accuracy and anti-vibration performance during high-speed or heavy-load operation, and is suitable for high-precision machining centers, automated assembly lines and high-stability material transfer equipment.

E-mail: [email protected]
    Inquiry Us
PREV：No previous article
NEXT：320KG Heavy Load Ball Screw Linear Module

  • Specifications:

    Category Item Specification
    Spec Repeatability (mm) ±0.01
    Ball Screw Lead (mm) 5 10 20 32
    Maximum Speed (mm/s) 200 400 800 1280
    Maximum Payload (Horizontal, kg) 120 95 50 35
    Maximum Payload (Vertical, kg) 40 25 15 12
    Rated Thrust (N) 2563 1281 640 400
    Stroke Pitch (mm) 800mm/2200 mm/50interval, 50 mm Pitch
    Parts AC Servo Motor Output (W) 750
    Ball Screw ∅ (mm) C7 ∅16
    High Rigidity Linear Guide(mm) W20xH15
    Coupling (mm) 10x19
    Outside EE-SX672(NPN)/
    FC-SPX303Z-2M(NPN)
    Home Sensor

    Sensor Layout:

    Allowable Overhang：

    Horizontal installation A B C Wall-mounted installation A B C Vertical installation A C
    Lead 70kg 2092 162 208 Lead 75kg 190 148 1911 Lead 15kg 940 940
    90kg 1555 117 149 95kg 140 108 1450 22kg 640 640
    120kg 1080 78 100 120kg 100 78 1080 40kg 350 350
    Lead 60kg 1107 172 208 Lead 65kg 188 156 1008 Lead 10kg 1248 1248
    75kg 848 130 156 80kg 144 119 788 14kg 894 894
    95kg 637 94 114 95kg 114 94 637 25kg 499 499
    Lead 20kg 1498 491 520 Lead 25kg 408 382 1180 Lead 7kg 1417 1417
    30kg 973 313 334 35kg 280 262 825 10kg 993 993
    50kg 550 172 182 50kg 182 172 550 15kg 660 660
    Lead 10kg 1311 692 625 Lead 15kg 408 449 860 Lead 5kg 1255 1255
    20kg 633 326 295 25kg 230 252 495 8kg 785 785
    35kg 339 169 156 35kg 156 169 339 12kg 525 525

    Static Loading Moment：

    Item Value (Unit: N.m)
    MY 552
    MP 552
    MR 638

    The torque values shown in the table represent the center of gravity.
    The guaranteed service life is 10,000 km when the product is used normally in compliance with the specifications in the catalog.
    The standard specifications do not apply to ceiling-mounted inverted use. Please contact our sales team for details if required.

  • Product Structure:

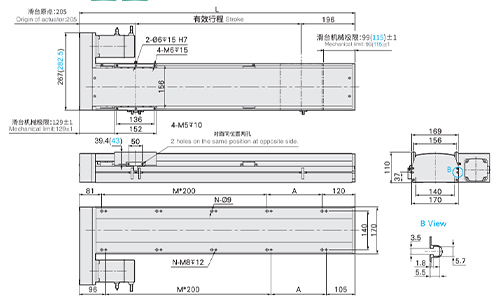

    Motor Right Side

    Parameter 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200
    L 1201 1251 1301 1351 1401 1451 1501 1551 1601 1651 1701 1751 1801 1851 1901 1951 2001 2051 2101 2151 2201 2251 2301 2351 2401 2451 2501 2551 2601
    A 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200
    M 4 5 5 5 5 6 6 6 6 7 7 7 7 8 8 8 8 9 9 9 9 10 10 10 10 11 11 11 11
    N 12 14 14 14 14 16 16 16 16 18 18 18 18 20 20 20 20 22 22 22 22 24 24 24 24 26 26 26 26
    Weight (KG) 30.61 31.29 31.97 32.65 33.33 34.01 34.69 35.37 36.05 36.73 37.41 38.09 38.77 39.45 40.13 40.81 41.49 42.17 42.85 43.53 44.21 44.89 45.57 46.25 46.93 47.61 48.29 48.97 49.65

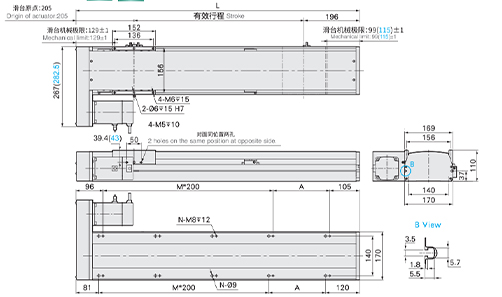

    Motor Left Side

    Parameter 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200
    L 1201 1251 1301 1351 1401 1451 1501 1551 1601 1651 1701 1751 1801 1851 1901 1951 2001 2051 2101 2151 2201 2251 2301 2351 2401 2451 2501 2551 2601
    A 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200
    M 4 5 5 5 5 6 6 6 6 7 7 7 7 8 8 8 8 9 9 9 9 10 10 10 10 11 11 11 11
    N 12 14 14 14 14 16 16 16 16 18 18 18 18 20 20 20 20 22 22 22 22 24 24 24 24 26 26 26 26
    Weight (KG) 30.61 31.29 31.97 32.65 33.33 34.01 34.69 35.37 36.05 36.73 37.41 38.09 38.77 39.45 40.13 40.81 41.49 42.17 42.85 43.53 44.21 44.89 45.57 46.25 46.93 47.61 48.29 48.97 49.65

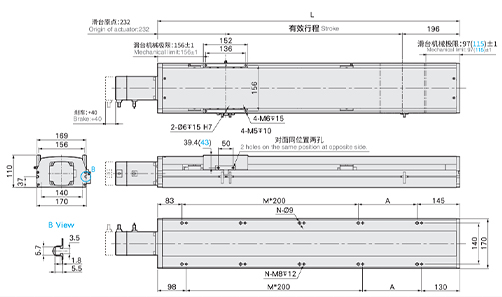

    Motor Exposed

    Parameter 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200
    L 1228 1278 1328 1378 1428 1478 1528 1578 1628 1678 1728 1778 1828 1878 1928 1978 2028 2078 2128 2178 2228 2278 2328 2378 2428 2478 2528 2578 2628
    A 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200
    M 4 5 5 5 5 6 6 6 6 7 7 7 7 8 8 8 8 9 9 9 9 10 10 10 10 11 11 11 11
    N 12 14 14 14 14 16 16 16 16 18 18 18 18 20 20 20 20 22 22 22 22 24 24 24 24 26 26 26 26
    Weight (KG) 29.74 30.42 31.1 31.78 32.46 33.14 33.82 34.5 35.18 35.86 36.54 37.22 37.9 38.58 39.26 39.94 40.62 41.3 41.98 42.66 43.34 44.02 44.7 45.38 46.06 46.74 47.42 48.1 48.78

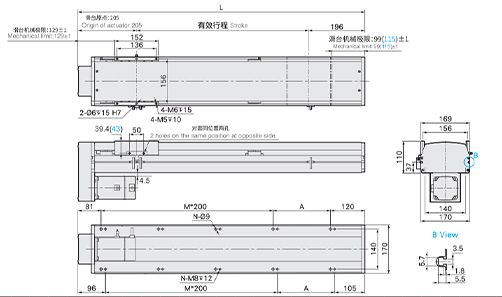

    Motor Bottom Side

    Parameter 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200
    L 1201 1251 1301 1351 1401 1451 1501 1551 1601 1651 1701 1751 1801 1851 1901 1951 2001 2051 2101 2151 2201 2251 2301 2351 2401 2451 2501 2551 2601
    A 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200
    M 4 5 5 5 5 6 6 6 6 7 7 7 7 8 8 8 8 9 9 9 9 10 10 10 10 11 11 11 11
    N 12 14 14 14 14 16 16 16 16 18 18 18 18 20 20 20 20 22 22 22 22 24 24 24 24 26 26 26 26
    Weight (KG) 30.61 31.29 31.97 32.65 33.33 34.01 34.69 35.37 36.05 36.73 37.41 38.09 38.77 39.45 40.13 40.81 41.49 42.17 42.85 43.53 44.21 44.89 45.57 46.25 46.93 47.61 48.29 48.97 49.65


  • Suitable Motor Brand:

    Options of Stepper Motors

    Brand Mark Brake Type Motor Power (Watt) AC‑Voltage Motor Model Driver Model
    Mitsubishi M No Brake (Horizontal Type) 750 220 HG‑KN73J‑S100 MR‑JE‑70A
    With Brake (Vertical Type) 750 220 HG‑KN73BJ‑S100
    Panasonic P No Brake (Horizontal Type) 750 220 MHMF082L1U2M MCDLN35SE
    With Brake (Vertical Type) 750 220 MHMF082L1V2M
    Delta T No Brake (Horizontal Type) 750 220 ECM‑B3M‑C20807RS1 ASD‑B3‑0721‑L
    With Brake (Vertical Type) 750 220 ECM‑B3M‑C20807SS1

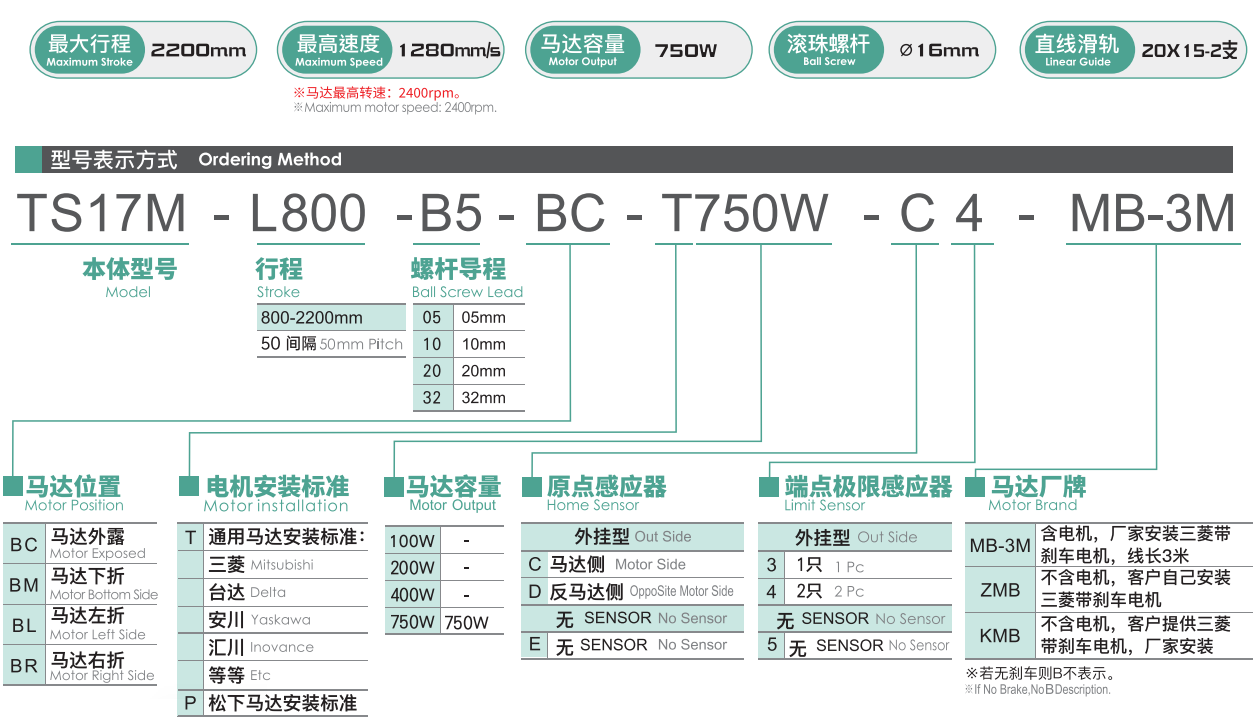

  • Model Explanation:

=
