Ball Screw Linear Module with Built-in Sensor

Our Ball Screw Linear Module with Built-in Sensor integrates a high-sensitivity position sensor into the module body, realizing real-time monitoring and feedback of linear movement position and speed. The Ball Screw Linear Module eliminates the need for additional external sensor installation, simplifying the equipment debugging process and improving the integration of automation systems. This Ball Screw Linear Module ensures accurate signal transmission and stable matching with servo control systems, and is suitable for intelligent production lines, automated testing equipment and CNC machine tools with real-time position monitoring needs.

E-mail: [email protected]
    Inquiry Us
PREV：2000mm Long Stroke Ball Screw Linear Module
NEXT：0.01mm High Precision Light Load Ball Screw Linear Module

  • Specifications:

    Category Item Specification
    Spec Repeatability (mm) ±0.01
    Ball Screw Lead (mm) 5 10 20 32
    Maximum Speed (mm/s) 250 500 1000 1600
    Maximum Payload (Horizontal, kg) 110 88 40 30
    Maximum Payload (Vertical, kg) 33 22 10 8
    Rated Thrust (N) 1388 694 347 218
    Stroke Pitch (mm) 50-1050mm/50 interval, 50 mm Pitch
    Parts AC Servo Motor Output (W) 400
    Ball Screw ∅ (mm) C7 ∅16
    High Rigidity Linear Guide(mm) W15XH12.5
    Coupling (mm) 10x14
    Outside EE-SX672(NPN)/FC-SPX303Z-2M(NPN)
    Home Sensor EE-SX674(NPN)/FC-SPX307Z-2M(NPN)

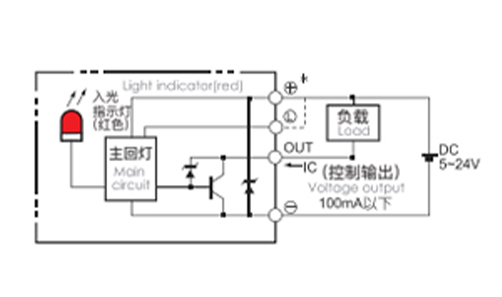

    Sensor Layout:

    Allowable Overhang：

    Horizontal installation A B C Wall-mounted installation A B C Vertical installation A C
    Lead 60kg 2512 242 232 Lead 55kg 257 269 2883 Lead 15kg 1118 1118
    80kg 1811 172 164 75kg 178 186 2000 22kg 770 770
    110kg 1284 114 108 110kg 108 114 1284 33kg 513 513
    Lead 30kg 2727 470 430 Lead 35kg 363 395 2368 Lead 10kg 1500 1500
    50kg 1577 266 242 55kg 218 238 1445 14kg 1072 1072
    88kg 854 134 122 88kg 123 134 854 22kg 682 682
    Lead 10kg 2304 1222 1028 Lead 12kg 854 1019 2552 Lead 7kg 1700 1700
    22kg 1443 540 451 20kg 500 596 1588 10kg 1188 1188
    40kg 860 277 233 40kg 233 277 860 - - -
    Lead 15kg 1033 545 405 Lead 15kg 405 545 1033 Lead 5kg 1503 1503
    25kg 604 311 233 30kg 188 251 495 8kg 944 944
    30kg 495 251 188 - - - - - - -

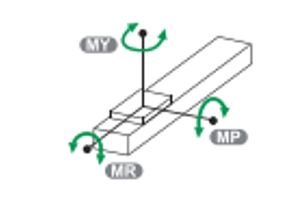

    Static Loading Moment：

    Item Value (Unit: N.m)
    MY 551
    MP 552
    MR 485

    The torque values shown in the table represent the center of gravity.
    The guaranteed service life is 10,000 km when the product is used normally in compliance with the specifications in the catalog.
    The standard specifications do not apply to ceiling-mounted inverted use. Please contact our sales team for details if required.

  • Product Structure:

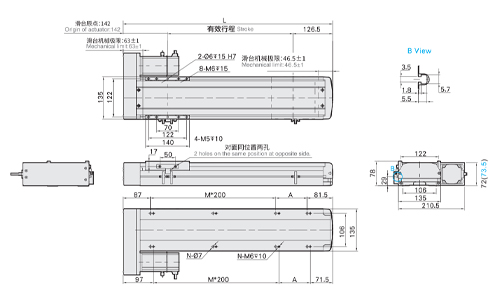

    Motor Right Side

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050
    L 318.5 368.5 418.5 468.5 518.5 568.5 618.5 668.5 718.5 768.5 818.5 868.5 918.5 968.5 1018.5 1068.5 1118.5 1168.5 1218.5 1268.5 1318.5
    A 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150
    M 0 0 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5
    N 4 4 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14
    Weight (KG) 9.4 9.94 10.48 11.02 11.56 12.1 12.64 13.18 13.72 14.26 14.8 15.34 15.88 16.42 16.96 17.5 18.04 18.58 19.12 19.66 20.2

    When the stroke is 50mm, the top-locking mounting holes on the main body will be blocked by the slider, allowing only 4 screws to be used for fixation. It is recommended that customers secure the main body using the bottom-locking mounting holes.

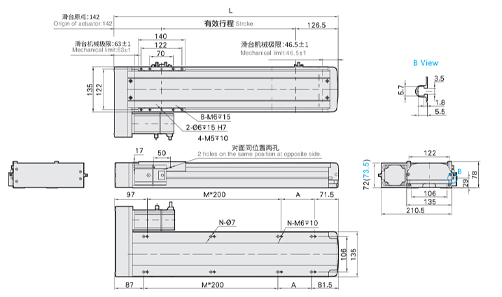

    Motor Left Side

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050
    L 318.5 368.5 418.5 468.5 518.5 568.5 618.5 668.5 718.5 768.5 818.5 868.5 918.5 968.5 1018.5 1068.5 1118.5 1168.5 1218.5 1268.5 1318.5
    A 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150
    M 0 0 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5
    N 4 4 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14
    Weight (KG) 9.4 9.94 10.48 11.02 11.56 12.1 12.64 13.18 13.72 14.26 14.8 15.34 15.88 16.42 16.96 17.5 18.04 18.58 19.12 19.66 20.2

    When the stroke is 50mm, the top-locking mounting holes on the main body will be blocked by the slider. Only 4 screws can be used for fixation. It is recommended that customers secure the main body using the bottom-locking mounting holes.

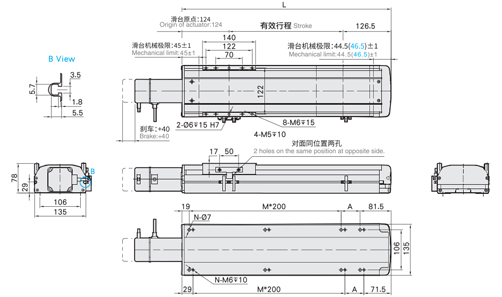

    Motor Exposed

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050
    L 300.5 350.5 400.5 450.5 500.5 550.5 600.5 650.5 700.5 750.5 800.5 850.5 900.5 950.5 1000.5 1050.5 1100.5 1150.5 1200.5 1250.5 1300.5
    A 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200
    M 0 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5
    N 4 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14
    Weight (KG) 8.75 9.3 9.85 10.4 10.95 11.5 12.05 12.6 13.15 13.7 14.25 14.8 15.35 15.9 16.45 17 17.55 18.1 18.65 19.2 19.75

    When the stroke is 50mm, the top-locking mounting holes on the main body will be blocked by the slider, allowing only 4 screws to be used for fixation. It is recommended that customers secure the main body using the bottom-locking mounting holes.

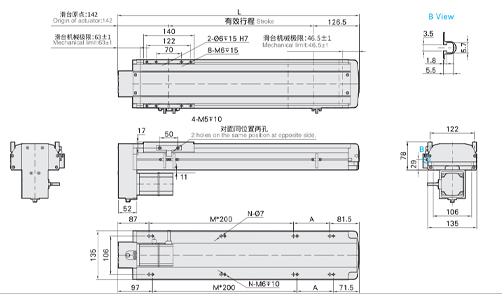

    Motor Bottom Side

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050
    L 318.5 368.5 418.5 468.5 518.5 568.5 618.5 668.5 718.5 768.5 818.5 868.5 918.5 968.5 1018.5 1068.5 1118.5 1168.5 1218.5 1268.5 1318.5
    A 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150
    M 0 0 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5
    N 4 4 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14
    Weight (KG) 9.4 9.94 10.48 11.02 11.56 12.1 12.64 13.18 13.72 14.26 14.8 15.34 15.88 16.42 16.96 17.5 18.04 18.58 19.12 19.66 20.2

    When the stroke is 50mm, the top-locking mounting holes on the main body will be blocked by the slider, allowing only 4 screws to be used for fixation. It is recommended that customers secure the main body using the bottom-locking mounting holes.

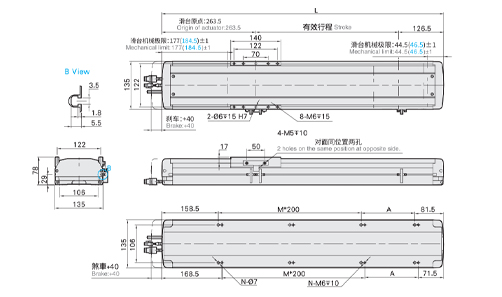

    Motor Hidden In

    Parameter 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050
    L 440 490 540 590 640 690 740 790 840 890 940 990 1040 1090 1140 1190 1240 1290 1340 1390 1440
    A 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200 50 100 150 200
    M 0 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5
    N 4 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14
    Weight (KG) 9.5 10.06 10.62 11.18 11.74 12.3 12.86 13.42 13.98 14.54 15.1 15.66 16.22 16.78 17.34 17.9 18.46 19.02 19.58 20.14 20.7


    When the stroke is 50mm, the top-locking mounting holes on the main body will be blocked by the slider, allowing only 4 screws to be used for fixation. It is recommended that customers secure the main body using the bottom-locking mounting holes.

  • Suitable Motor Brand:

    Options of Stepper Motors

    Brand Motor Mark Brake Type Motor Power (Watt) AC Supply Voltage Servo Motor Model Servo Driver Model
    Mitsubishi M No Brake (Horizontal Type) 400 220 HG-KN43J-S100 MR-JE-40A
    Mitsubishi M With Brake (Vertical Type) 400 220 HG-KN43BJ-S100 MR-JE-40A
    Panasonic P No Brake (Horizontal Type) 400 220 MHMF042L1U2M MBDLN25SE
    Panasonic P With Brake (Vertical Type) 400 220 MHMF042L1V2M MBDLN25SE
    Delta T No Brake (Horizontal Type) 400 220 ECM-B3M-C20604RS1 ASD-B3-0421-L
    Delta T With Brake (Vertical Type) 400 220 ECM-B3M-C20604SS1 ASD-B3-0421-L

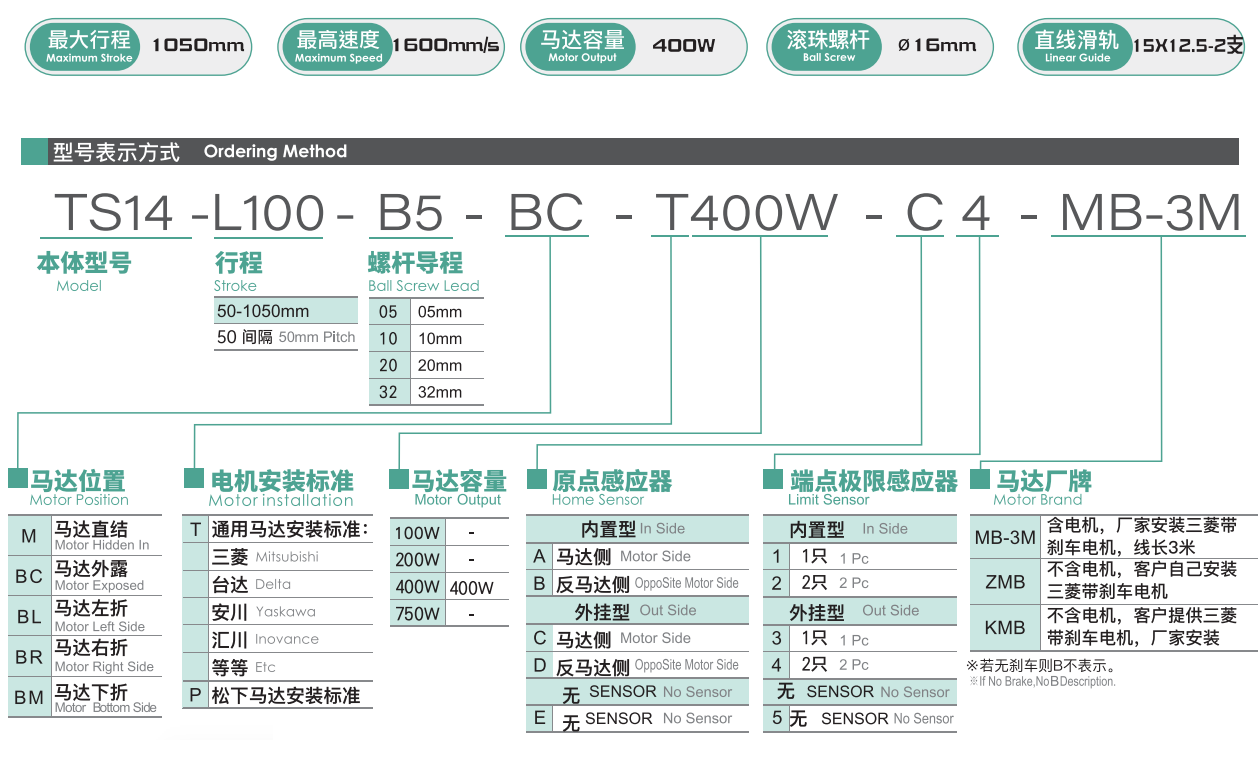

  • Model Explanation:

=
