Small Linear Motor Module

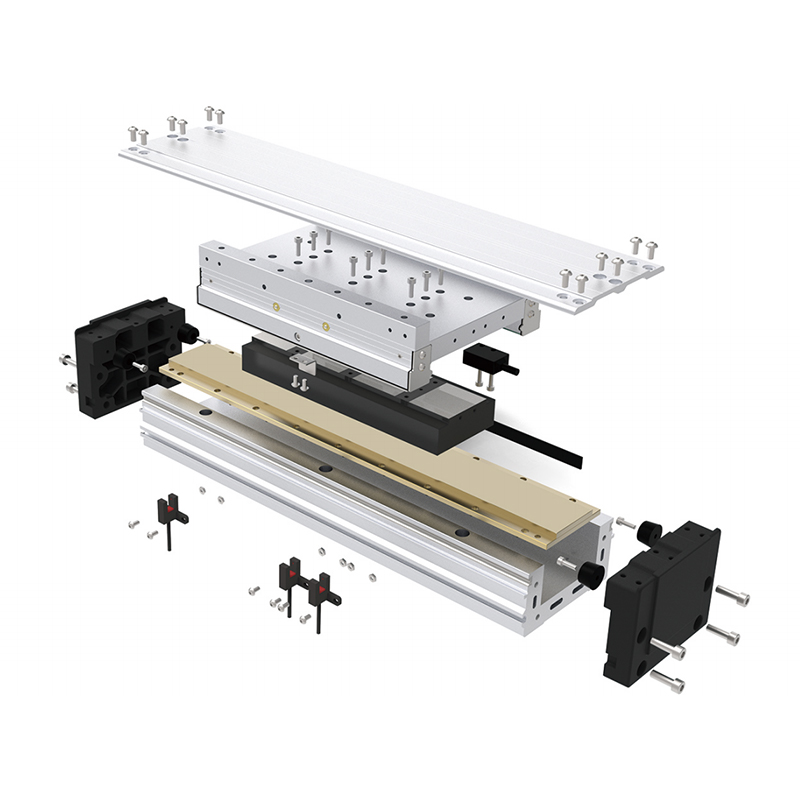

Built-in Dual-Guide Fully Dustproof Small Linear Motor Module
The TYSM8-L-F is a high-performance, fully dustproof small linear motor module with built-in dual guides and a heavy-duty carriage, designed for reliable operation in harsh industrial environments.

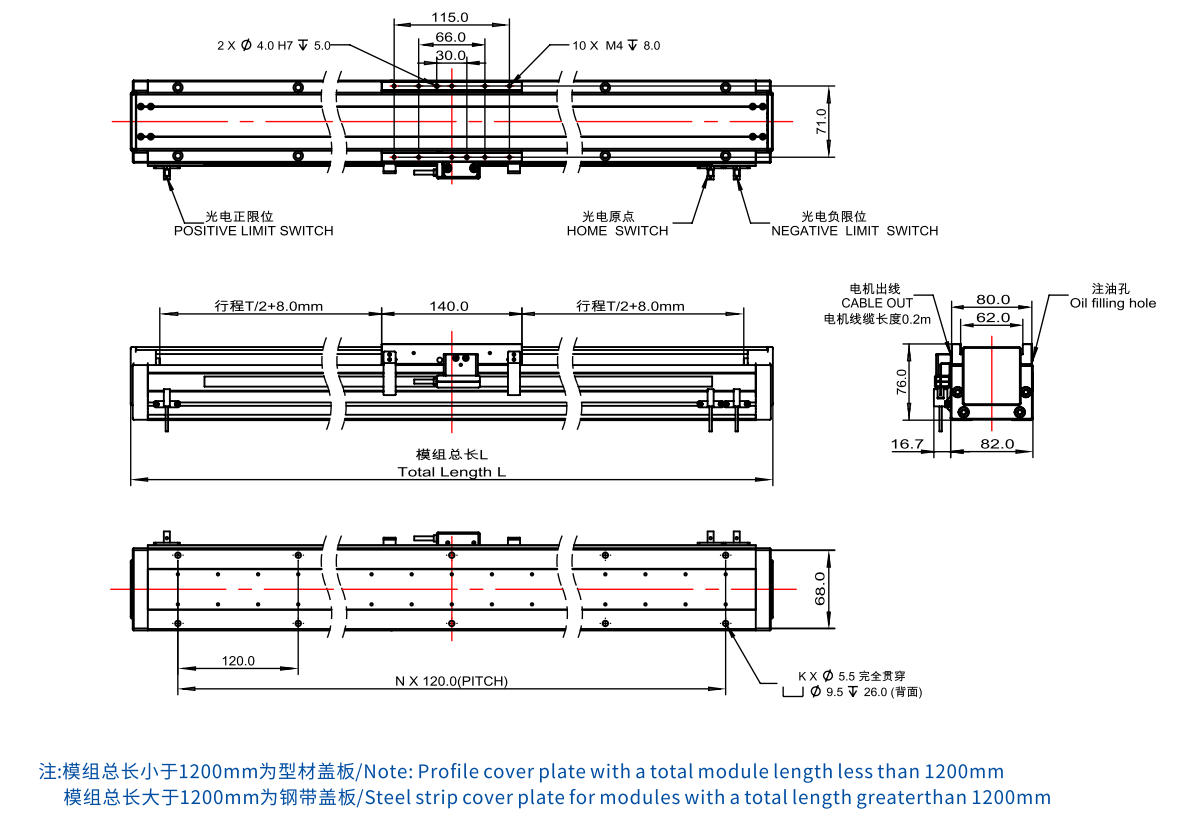

With a compact 82 mm body width, this module offers a 1760 mm maximum stroke, a top speed of 2000 mm/s, and 2 G maximum acceleration, delivering fast, highly responsive linear movement. It provides 98 N continuous thrust and supports a 20 kg maximum load under 0.5 m/s and 0.5 G conditions. The heavy-load carriage, paired with dual linear guides, ensures enhanced rigidity, motion stability, and positional repeatability. The fully dustproof enclosure protects internal components from contamination, making it ideal for high-precision positioning, material handling, and compact automated machinery in dusty environments. It is compatible with standard control systems for easy integration.
