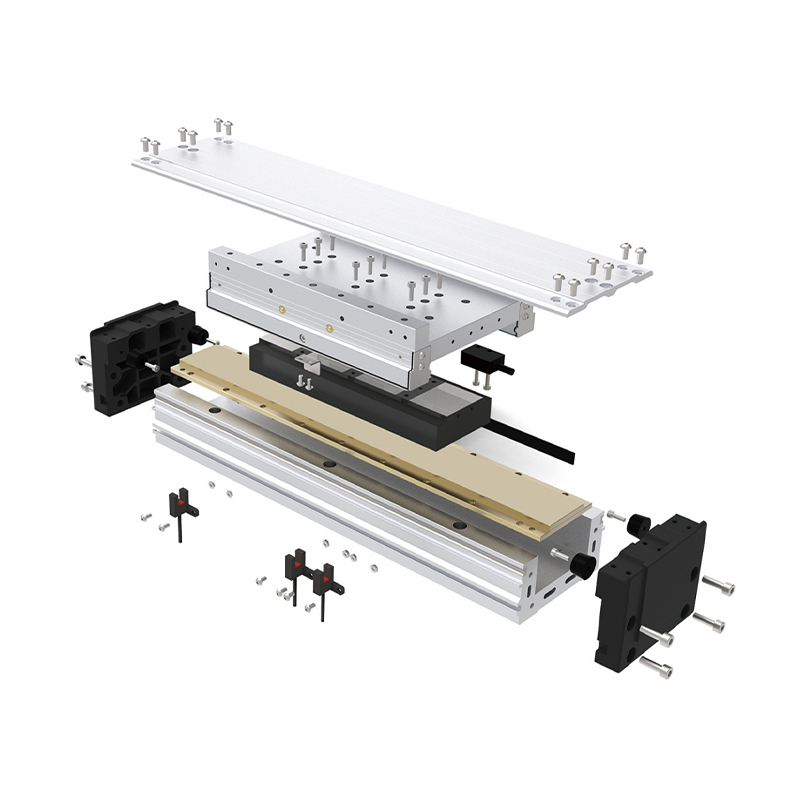

Long-Travel High-Thrust Medium Linear Motor Module

The TYSM11-L is a medium linear motor module built for demanding long-travel, medium-to-heavy duty automation scenarios.
At just 115 mm wide, it delivers a 3720 mm stroke range, a 2000 mm/s top speed, and 2 G acceleration, enabling fast, responsive linear motion even at extended travel lengths. It offers 203 N continuous thrust and supports a 45 kg maximum load (at 0.5 m/s, 0.5 G), making it well-suited for applications requiring both power and precision. Its surface-mounted dual rail system ensures consistent motion stability and repeatability, making it ideal for material transfer, assembly automation, and industrial positioning systems. It supports flexible mounting and seamless integration with standard motion control architectures.

E-mail: [email protected]
    Inquiry Us
PREV：No previous article
NEXT：Long-Stroke Surface-Mounted Dual Rail Medium Linear Motor Module

  • Parameter-1

    Body Width 115mm
    Maximum Speed 2000mm/s
    Continuous Thrust 203N
    Maximum Stroke 3720mm
    Maximum Acceleration 2G
    Maximum Load 45kg (0.5m/s, 0.5G)


    Parameter-2

    Horizontal installation A B C Wall-mounted installation A B C
    v=0.5m/s
    a=5m/s²    		 30kg 1167 382 541 v=0.5m/s
    a=5m/s²    		 20kg 517 495 1116
    35kg 532 173 246 25kg 331 322 714
    45kg 320 104 148 28kg 245 242 530
    v=0.8m/s
    a=8m/s²    		 25kg 515 230 298 v=0.8m/s
    a=8m/s²    		 12kg 494 549 876
    30kg 317 141 184 20kg 272 309 484
    40kg 218 97 126 23kg 229 262 407
    v=1m/s
    a=10m/s²    		 23kg 342 171 212 v=1m/s
    a=10m/s²    		 10kg 465 612 848
    28kg 268 134 163 15kg 291 390 535
    33kg 217 108 130 20kg 204 280 378
    v=1.5m/s
    a=15m/s²    		 12kg 291 242 228 v=1.5m/s
    a=15m/s²    		 9kg 243 504 559
    15kg 219 186 171 11kg 189 394 445
    17kg 185 160 144 13kg 152 318 366
    v=2.0m/s
    a=20m/s²    		 9kg 155 216 145 v=2.0m/s
    a=20m/s²    		 7kg 142 393 347
    10kg 133 190 124 9kg 100 278 245
    11kg 115 169 108 11kg 73 204 180

    Static Loading Moment：

    Item Value (Unit: N.m)
    MY 1742
    MP 1742
    MR 2951

    The torque values shown in the table represent the center of gravity.
    The guaranteed service life is 10,000 km when the product is used normally in compliance with the specifications in the catalog.
    The standard specifications do not apply to ceiling-mounted inverted use. Please contact our sales team for details if required.

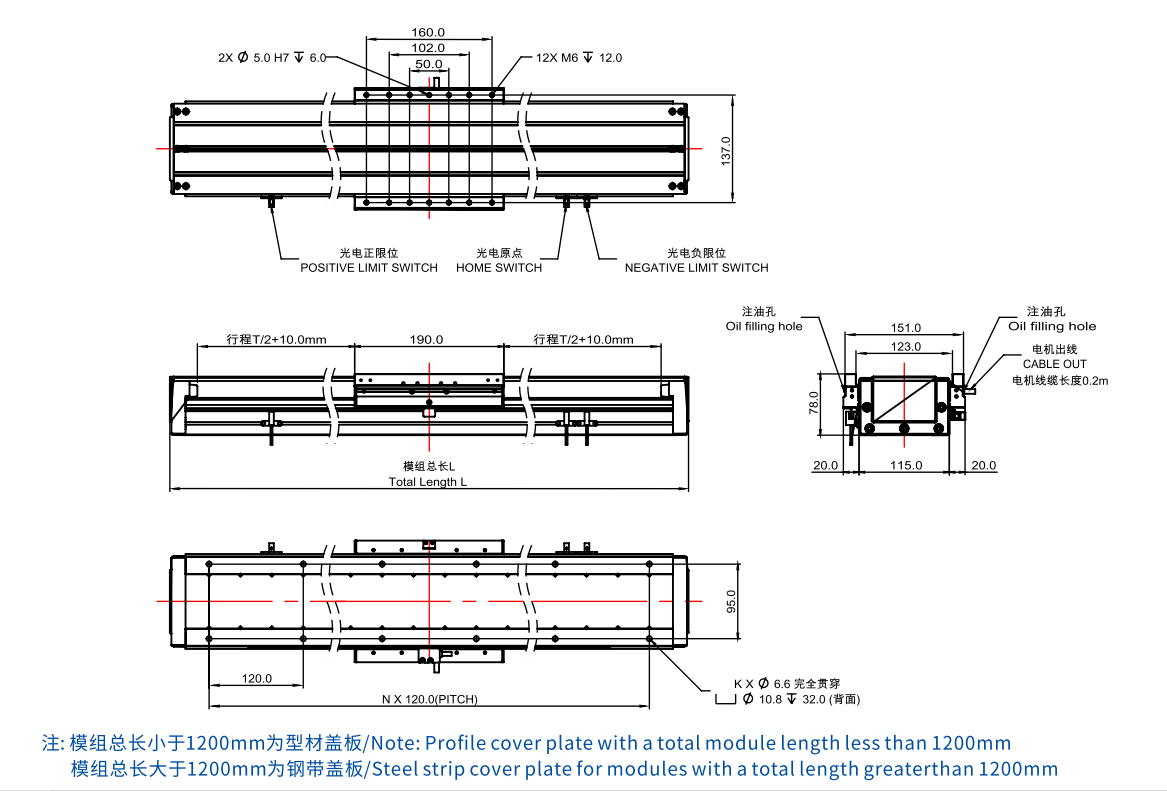

    Parameter-3


    Parameter-4

    Parameters Stroke T=60mm Stroke T=120mm Stroke T=180mm Stroke T=240mm Stroke T=300mm Stroke T=360mm Stroke T=420mm Stroke T=480mm Stroke T=540mm Stroke T=600mm Stroke T=660mm Stroke T=720mm Stroke T=780mm Stroke T=840mm Stroke T=900mm Stroke T=960mm Stroke T=1020mm Stroke T=1080mm Stroke T=1140mm Stroke T=1200mm Stroke T=1260mm
    K 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20 20 22 22 24 24 26
    N 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12
    L (mm) 340 400 460 520 580 640 700 760 820 880 940 1000 1060 1120 1180 1236 1296 1356 1416 1476 1536
    Module Weight (kg) 9 9.8 10.5 11.3 12 12.8 13.5 14.3 15 15.8 16.5 17.3 18 18.8 19.5 20.3 21 21.8 22.5 23.3 24

    Parameters Stroke T=1320mm Stroke T=1380mm Stroke T=1440mm Stroke T=1500mm Stroke T=1560mm Stroke T=1620mm Stroke T=1680mm Stroke T=1740mm Stroke T=1800mm Stroke T=1860mm Stroke T=1920mm Stroke T=1980mm Stroke T=2040mm Stroke T=2100mm Stroke T=2160mm Stroke T=2220mm Stroke T=2280mm Stroke T=2340mm Stroke T=2400mm Stroke T=2460mm Stroke T=2520mm
    K 26 28 28 30 30 32 32 34 34 36 36 38 38 40 40 42 42 44 44 46 46
    N 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 20 20 21 21 22 22
    L (mm) 1596 1656 1716 1776 1836 1896 1956 2016 2076 2136 2196 2256 2316 2376 2436 2496 2556 2616 2676 2736 2796
    Module Weight (kg) 24.8 25.5 26.3 27 27.8 28.5 29.3 30 30.8 31.5 32.3 33 33.8 34.5 35.3 36 36.8 37.5 38.3 39 39.8

    Parameters Stroke T=2580mm Stroke T=2640mm Stroke T=2700mm Stroke T=2760mm Stroke T=2820mm Stroke T=2880mm Stroke T=2940mm Stroke T=3000mm Stroke T=3060mm Stroke T=3120mm Stroke T=3180mm Stroke T=3240mm Stroke T=3300mm Stroke T=3360mm Stroke T=3420mm Stroke T=3480mm Stroke T=3540mm Stroke T=3600mm Stroke T=3660mm Stroke T=3720mm
    K 48 48 50 50 52 52 54 54 56 56 58 58 60 60 62 62 64 64 66 66
    N 23 23 24 24 25 25 26 26 27 27 28 28 29 29 30 30 31 31 32 32
    L (mm) 2856 2916 2976 3036 3096 3156 3216 3276 3336 3396 3456 3516 3576 3636 3696 3756 3816 3876 3936 3996
    Module Weight (kg) 40.5 41.3 42 42.8 43.5 44.3 45 45.8 46.5 47.3 48 48.8 49.5 50.3 51 51.8 52.5 53.3 54 54.8

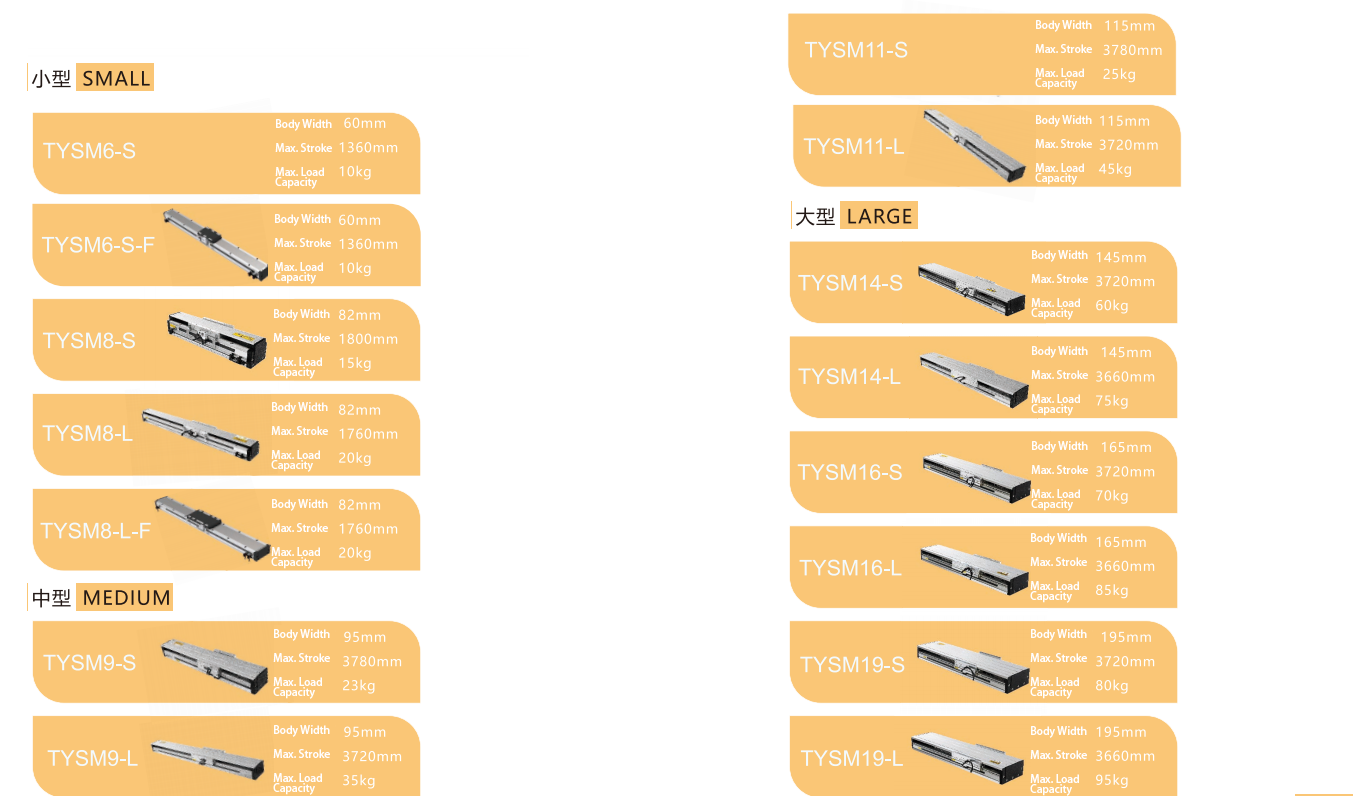

  • Linear Modules Overview

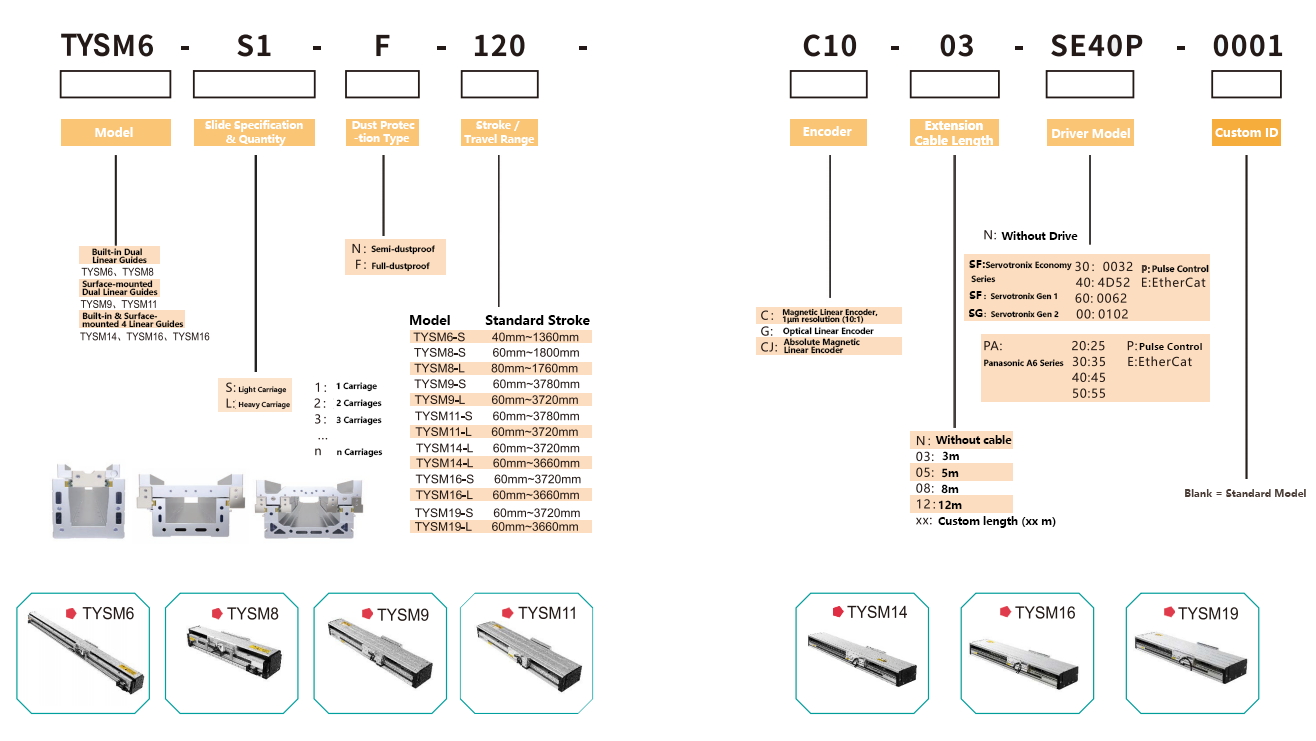

    Model Description

=
