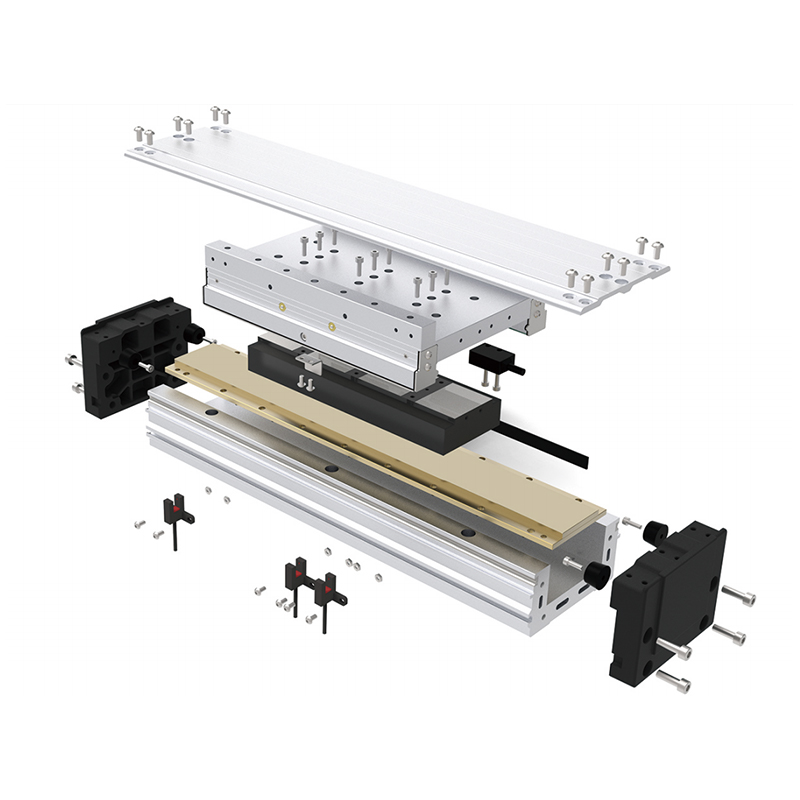

Dual-Guide Heavy-Carriage Medium Linear Motor Module

Home / Products / Linear Motor Module / Medium Linear Motor Module / Dual-Guide Heavy-Carriage Medium Linear Motor Module

  • Dual-Guide Heavy-Carriage Medium Linear Motor Module
  • Dual-Guide Heavy-Carriage Medium Linear Motor Module
Medium Linear Motor Module

Dual-Guide Heavy-Carriage Medium Linear Motor Module

The TYSM9-L is a medium-duty linear motor module featuring surface-mounted dual rails and a heavy-load carriage, purpose-built for stable, long-stroke medium-load automation tasks.
With a 95 mm body width, this unit delivers a 3720 mm maximum stroke, a peak speed of 2000 mm/s, and 2 G maximum acceleration, supporting high-response linear motion across extended travel ranges. It provides 147 N continuous thrust and handles a 35 kg maximum load at 0.5 m/s and 0.5 G operating conditions. The surface-mounted dual rail system, combined with the heavy-duty carriage, enhances structural rigidity, motion stability, and positioning consistency, making it well-suited for material transfer, automated assembly lines, and medium-sized industrial machinery. It supports flexible mounting configurations and integrates smoothly with standard motion control systems.

=
